BT Innovations // BTI 3.5 TFT Gauge for ECU Master

$475.00 – $505.00

Centered
Left 12mm (Supra LHD Clock Location)
Right 12mm (Supra RHD Clock Location)
Flat Back w/ Wired Remote
Flat Back w/ Wired Remote and Windshield Mount
$475.00
SKU: N/A
Description

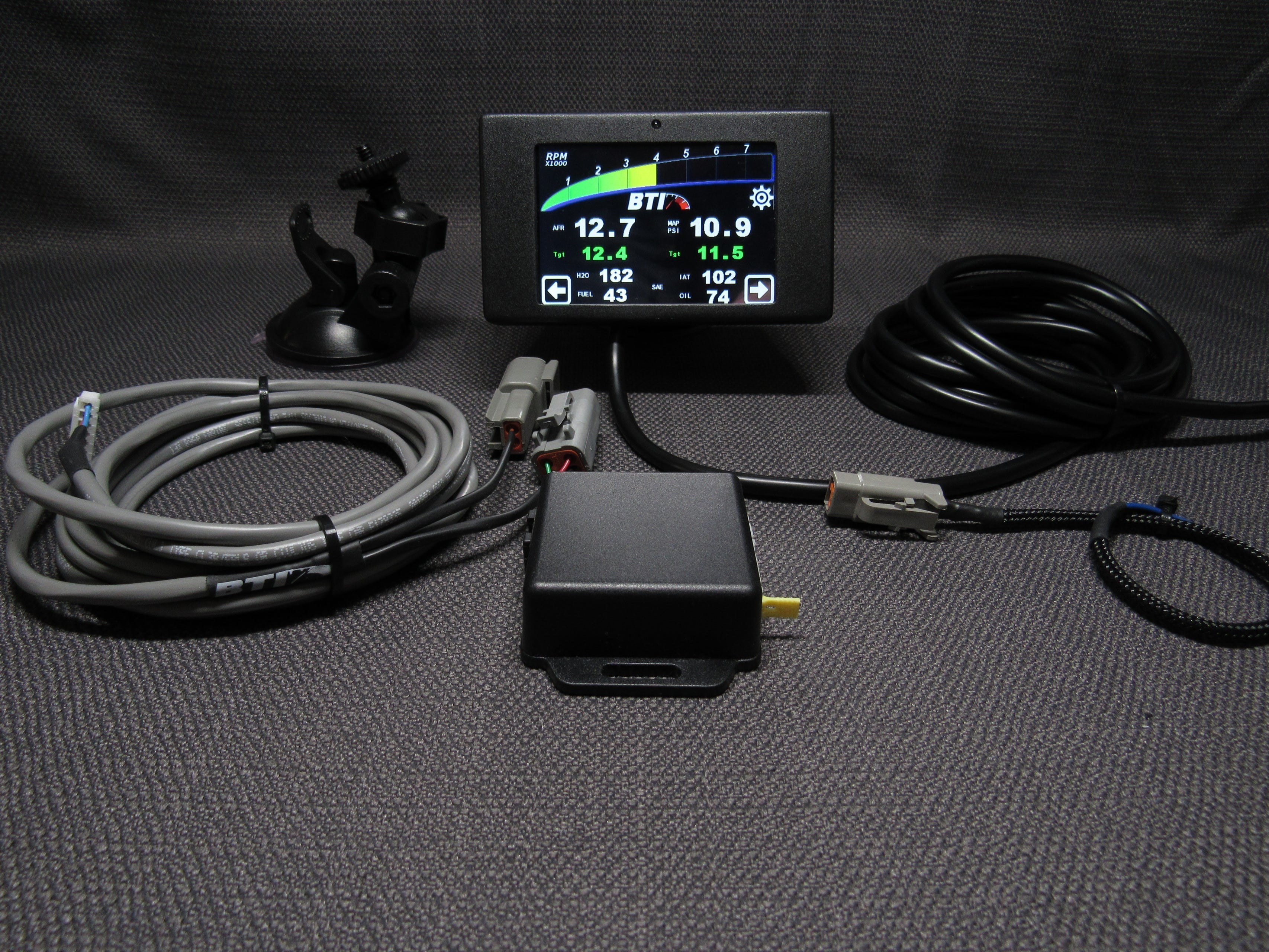

BTI 3.5" TFT Gauge with ECU Master Integration

If you are looking for a little more than just a display, then this may be the device for you. This gauge has the same capabilities as the standard BTI gauges, but adds some features like user scalable analog outputs for Boost control and Traction Control. This eliminates those rotary switches and additional holes in your dash. There are also many peak hold functions including a Boost Episode snap-shot screen that will display key parameter values at peak boost. Of course this gauge will display ECU protection faults such as Over-Boost , Lean Protection, Oil Pressure Protection, Coolant Protection and more. Finally, this gauge retains the user programmable shift light by gear function.

This Display has the capability of using analog outputs for the Classic ECU users and also has the capability of sending CAN communications to the Black series ECUs.

We have also added some new options for this gauge: Now available with a flat back so that you can use an adhesive strip to mount the display in a suitable location.

There is also the same display with a suction cup windshield mount which allows for the most versatile mount as well as a similar version that comes with a standard mount with a red label adhesive backing.
