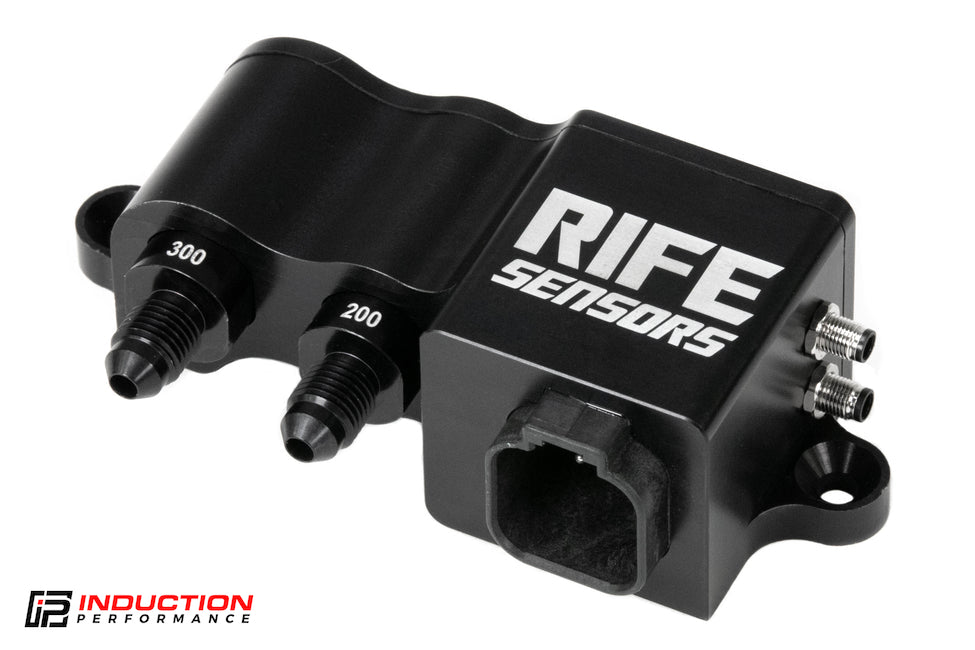

RIFE Dual Sensor Block (Custom Config)

$329.00

SKU: RIFE-2PC
Description

RIFE Dual Sensor Block (Custom Config)

Part # RIFE-2PC

READ DESCRIPTION WHEN ORDERING

NOTE: Build TIME MAY BE 1-2 weeks for Custom Config Blocks.

NOTE: Please choose from drop down menus your 2 sensor choices.
We cannot fulfill your order until we have this info.

  • Vibration isolated sensors
  • -3 AN or 1/8 NPT connections
  • Automotive Grade Deutsch DT connectors
  • Uses 6 wire Deutsch DT Connector Available Here
  • Sealed to IP69
  • Billet aluminum construction
  • Available in 1, 2, 3, or 4 sensor packages
  • Custom configurations available
  • Snubbers available to reduce damaging pressure spikes*
  • Industry standard 0-5V output
  • Compatible with all ECU’s/data loggers**
  • Reduced wiring clutter
  • Higher accuracy
  • Faster response
  • Flexible mounting options
  • All wetted parts are 316 stainless, Viton or anodized aluminum
  • 1 Bar, 2 bar, 3 Bar, 4 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
  • 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi

For Wiring/Sensor Location Info See the Picture Below

Dual RIFE sensor Wiring and Sensor Location Chart

For Sensor Scaling Data: Click Here

Watch this video on the internals and the unique features of this sensor solution!
