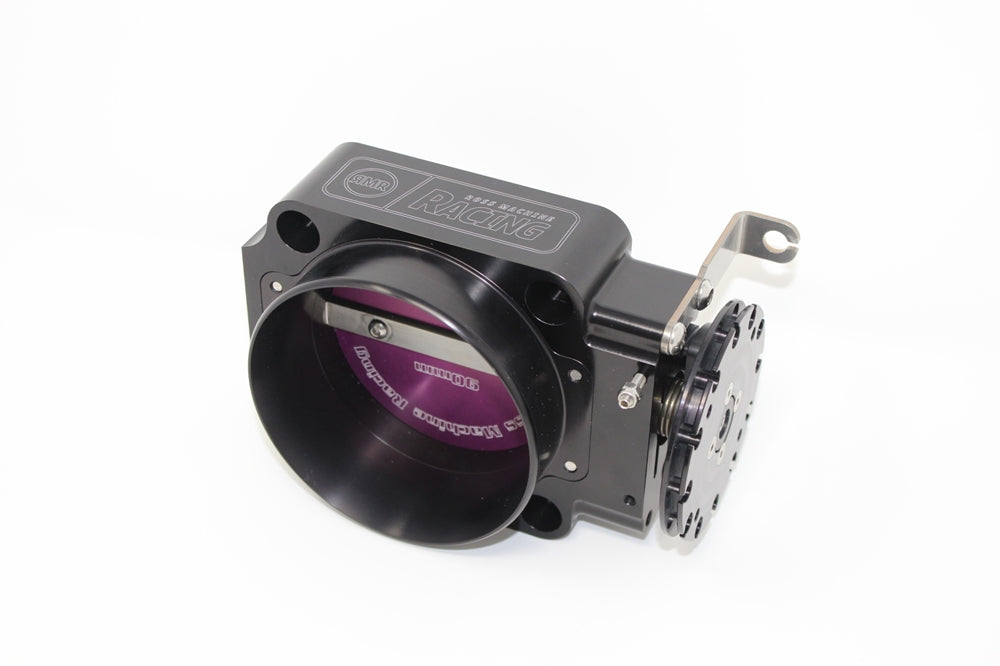

Ross Machine Racing - RMR 90mm Throttle Body Universal Ford Mustang Toyota Supra

$359.00 – $409.00

Hose
3.5" Vanjen
4" Vanjen
3.5" V-Band
4" V-Band
Clockwise
Counter-Clockwise
Ford (No Adapter)
Toyota TPS (+$50)
$359.00
SKU: DM3622
Description








Ross Machine Racing's 90mm throttle body is made to the highest standards. Manufactured using CNC machining and is made from 6061 billet aluminum combined with a stainless steel shaft.

TPS Notes:

If using - 86-93 5.0L Mustang TPS - Direct bolt on - Standard CW Mustang T/Wheel Rotation
If using - Toyota Supra 2JZGTE TPS - TPS Adapter needed - Reverse CCW T/Wheel Rotation

When ordering !!
*** You must select the rotation direction of the throttle wheel see above tps notes***

Features:

  • Uses same mounting bolt pattern as 86-93 5.0L Mustang throttle body
  • M8x45mm screws and washers included
  • Available in black anodize only
  • Total thickness including the hose mount is 2-1/2 inches
  • Available in standard Mustang CW or CCW rotation
  • Cable mounting bracket pre-installed
  • 90mm diameter blade - CNC machined from 6061 aluminum
  • 4" (101mm) hose connection, 3.5" or 4" Vanjen, or 3.5" or 4" V-Band
  • CNC solid billet 6061 aluminum construction
  • CNC stainless steel shaft - split shaft design
  • Black Anodize finish with Ross Machine Racing logo
  • Includes 4" o-ring installed in back for prefect seal
  • Needle bearing with seal to minimize leakage
  • 2.7" throttle cable pulley
