RIFE Single Sensor Block

$199.00

SKU: RIFE-1PC
Description

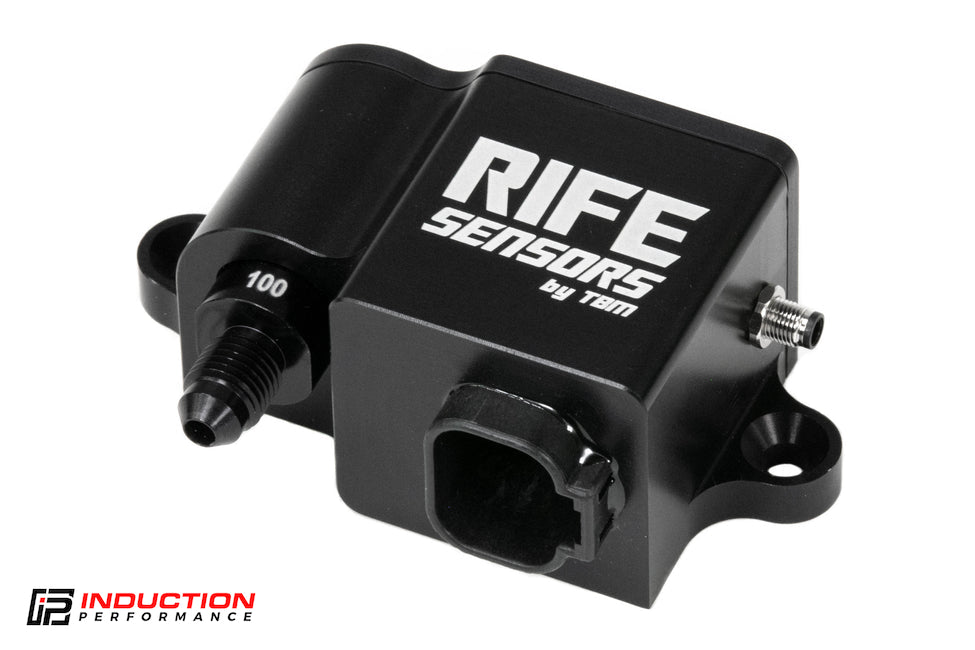

RIFE Single Sensor Block

Part # RIFE-1PC

Includes additional Analog input! Side mounted M5 analog input can be used for connecting any 0-5V analog sensor or Temperature sensor. 5V and sensor ground are supplied through connector

  • Vibration isolated sensors
  • -3 AN or 1/8 NPT connections
  • Automotive Grade Deutsch DT connectors
  • Sealed to IP69
  • Billet aluminum construction
  • Available in 1, 2, 3, or 4 sensor packages
  • Custom configurations available
  • Snubbers available to reduce damaging pressure spikes*
  • Industry standard 0-5V output
  • Compatible with all ECU’s/data loggers**
  • Reduced wiring clutter
  • Higher accuracy
  • Faster response
  • Flexible mounting options
  • All wetted parts are 316 stainless, Viton or anodized aluminum
  • 1 Bar, 2 bar, 3 Bar, 4 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
  • 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi
  • Sensors with a specific O-Ring package for alcohol fuels (Ethanol, Methanol, E85, etc.)

*optional – Contact your dealer
**additional interface equipment may be necessary

For Wiring/Sensor Location see chart below

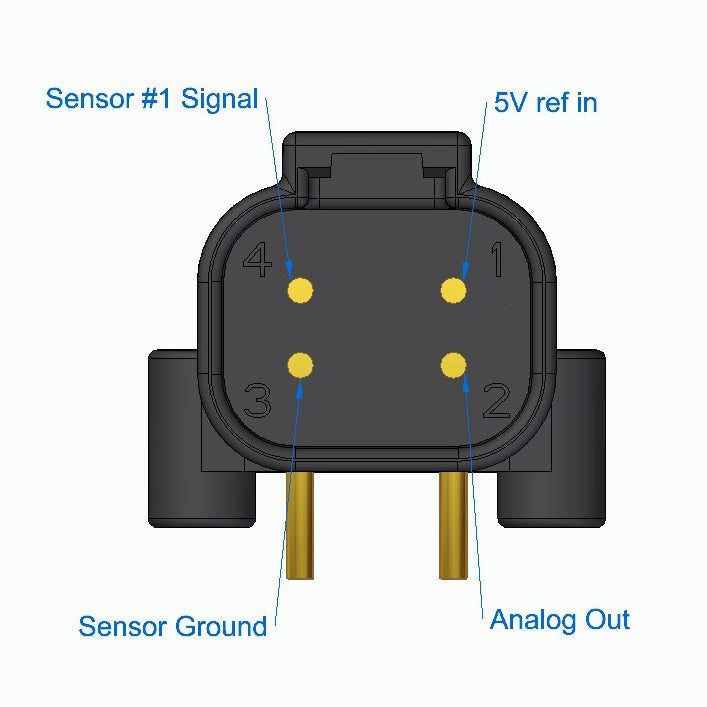

Single RIFE sensor Wiring/Sensor Layout
