20-0415-0X FUEL HANGER PLUMBING KIT, MKIV SUPRA
This plumbing kits include everything required to plumb the fuel system between the Radium hanger and the fuel rail in the JZA80 Supra. This plumbing kit is designed to work best with a Radium Engineering fuel rail for the 2JZ (20-0215), but may also work with other aftermarket fuel rails. This kit IS NOT COMPATIBLE with the stock 2JZ fuel rail.
The kit includes pre-made -10AN and -8AN PTFE feed lines that run from the fuel pump hanger through the fuel filter to the fuel rail (sold separately). The fuel lines clear the OEM fuel pump cover and do not require any cutting or drilling to get them past the fuel tank.
A -6AN fuel hose runs from the FPR (not included) to the pump hanger return port. The fuel lines run though these billet aluminum fuel brake line retainers. The return hose E85 compatible rubber and can be easily modified for installation of an in-line flex fuel sensor.
The included Radium Engineering fuel filter mounts underneath the vehicle using a specifically designed MKIV Supra (JZA80) bolt-on billet mount.
Depending on the kit selected (-03,-05), the fuel filter will be assembled with a choice of different elements. Go HERE

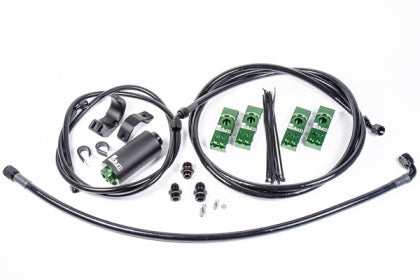

for more filter element information. The -05 version is most popular because it meets filtration requirements set forth by fuel injector manufacturers and works well with E85.INCLUDES
-Fuel Filter (-03 Stainless, or -05 Microglass)
-Black 8AN and 10AN Male Adapter Fittings (x2)
-Billet Aluminum 60mm Filter 2-Piece Clamp
-Aluminum MKIV Supra Billet FIlter Mount
-8AN/10AN PTFE Fuel Feed Line
-6AN Fuel Return Hose (EFI rubber hose)
-Fuel Brake Line Retainers
-Stainless Steel Hardware
