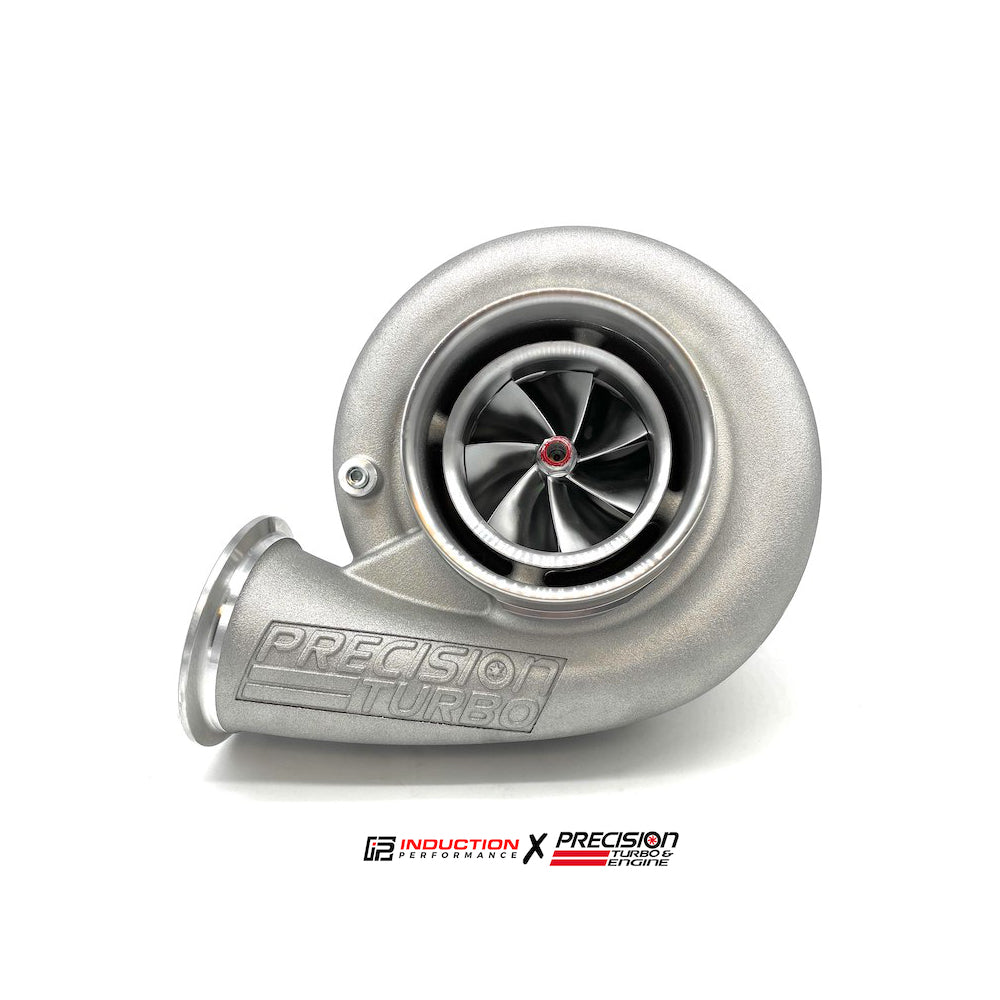

Precision Turbo and Engine - Sportsman Next Gen 7685 CEA - Race Turbocharger
HP Rating: 1500HP
We know you want to be the best both on the track and off. Whether you're a diehard racer or just looking to boost your daily driver's performance, Precision Turbo and Engine has what you need. For exceptional power and unbeatable technology at an affordable price, PTE can help you find the perfect turbocharger for your unique setup.
PTE's Next Gen 7685 Turbocharger features the following:
All new sportsman frame sized 7685 turbocharger features a Next Gen, 76mm CEA compressor wheel mated to our 85mm high flow turbine wheel. This unit is based on the Sportsman ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the Next Generation, the Next Gen Sportsman 7685 is a record setting turbocharger and is a great option for those looking to make upwards of 1,500hp.
- Next Gen CEA (Competition Engineered Aerodynamics) 76mm Compressor Wheel Machined from a 2618-Aluminum Forging (76mm Inducer / 112 Exducer)
- Air-Cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA)
- Sportsman Compressor Cover with a 5.0” Inlet and 4.2” Outlet
- 85mm CEA Turbine Wheel (85mm Exducer / 90mm Inducer)
Turbine Housing options:
- Divided T4 .98 A/R - 27009219319
- Divided T4 1.12 A/R - 27009219329
- Divided T4 1.28 A/R - 27009219339
- Sportsman Stainless V Band In / Out 1.00 A/R - 27009219819
- Sportsman Stainless V Band In / Out 1.15 A/R - 27009219829
- Sportsman Stainless V Band In / Out 1.28 A/R - 27009219839
- No Turbine Housing - 27009219999
Precision customers have a history of setting records and getting noticed. They don't sit in the stands watching the action, they're the ones making it happen. Innovation is a collaborative process and we focus our efforts on you. Get involved and be a part of the action today with PTE.
