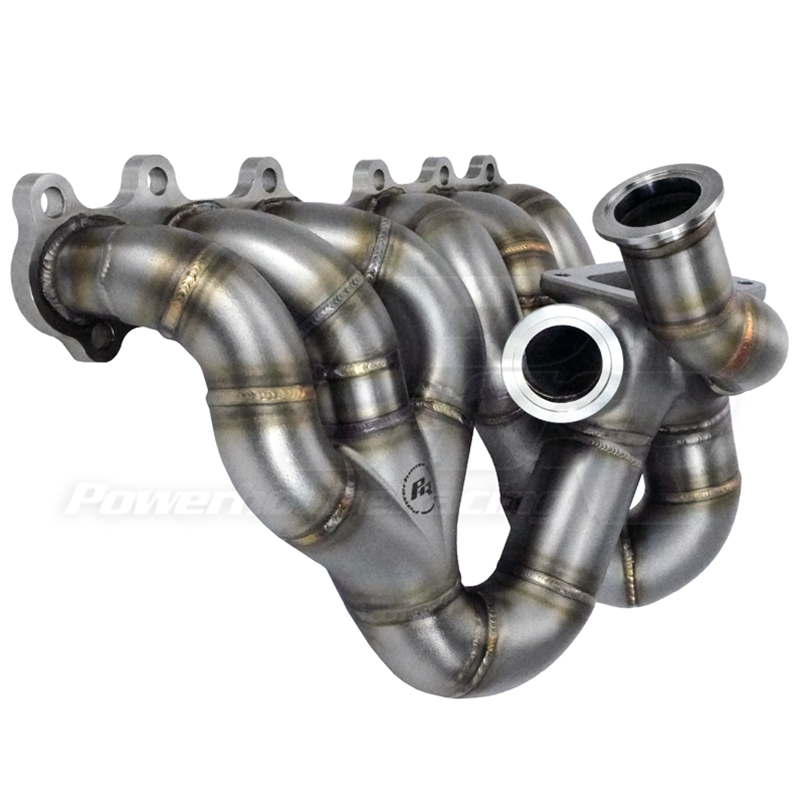

PHR - Powerhouse Racing S23QR Turbo Manifold for 2JZ-GTE - Twin Scroll

$2,099.00

SKU: PHR 01012070.T.2.C
Description

PHR - Powerhouse Racing S23QR Turbo Manifold for 2JZ-GTE - Twin Scroll

Part Number: PHR 01012070.T.2.C

Flange: T4, Twin Scroll

Wastegate: Dual Gate (44-46mm)

Powerhouse Racing is proud to offer our S23QR Turbo Manifold for the 2JZ-GTE engine. We developed this to be the best manifold for the 2JZ-GTE. It's made to support H-Cover and Sportsman T4 PTE Turbos. Look no further than here for highest horsepower applications.

This manifold is part of our QR series lineup, utilizing 3 cast collectors into what PHR has dubbed the quick runner configuration. The QR manifold will have the same flow potential of our billet collector manifolds in a simpler and more cost effective package. Passing the material and cost savings on to you with just the small sacrifice of the aesthetics and design of PHR's billet collector options.

Our manifolds are designed for 3 purposes:

First: Ease of installation. - Don't spend years trying to get your manifold to fit, only to have it come loose again. Those with the experience have bloodied enough knuckles, and ground down enough nuts to know how important this is.

Second: Fitment. - This manifold is hands down the best fitting manifold. Designed to fit perfectly under stock Supra Hood and behind a motor plated setup.

Third: Maximum Performance.- We take pride in designing and producing the highest quality and strongest performing manifolds on the market

  •  PHR manifolds use schedule 10 stainless steel tubing. Strong material backed by our lifetime warranty against cracking.
    All TIG welded, Fully back purged, for strength quality and flow. These also eliminates any crystallization (slag). Slag can break off from inside lesser designed manifolds and damage the turbo.
  • The placement of the waste gate(s) also do not interfere with the way the intercooler pipes or air filter are mounted.
  • Each one is built on a car so fitment and quality is guaranteed!

Features:

• T4 Twin-Scroll Collector • Short, Equal Length Primary Into Two Secondary Runner Design

  • 1.25" 304L Stainless Steel Schedule 10 Primaries (1.44" ID)

  • 2.0" 304L Stainles Steel Schedule 10 Secondaries (2.157" ID)

- Includes Nut Kit and 4 studs and nuts for turbo to collector flange.

Powerhouse Racing Turbo Manifolds -
PHR manifolds are hand built in-house by some of the best fabricators on the planet. Pain-staking detail is taken in every inch of these works of art. Backed by 26 years of proven performance.

*PRODUCT PHOTOS ARE INDICATIVE OF THE PART QUALITY, SOME DESIGN ASPECTS MAY CHANGE**
