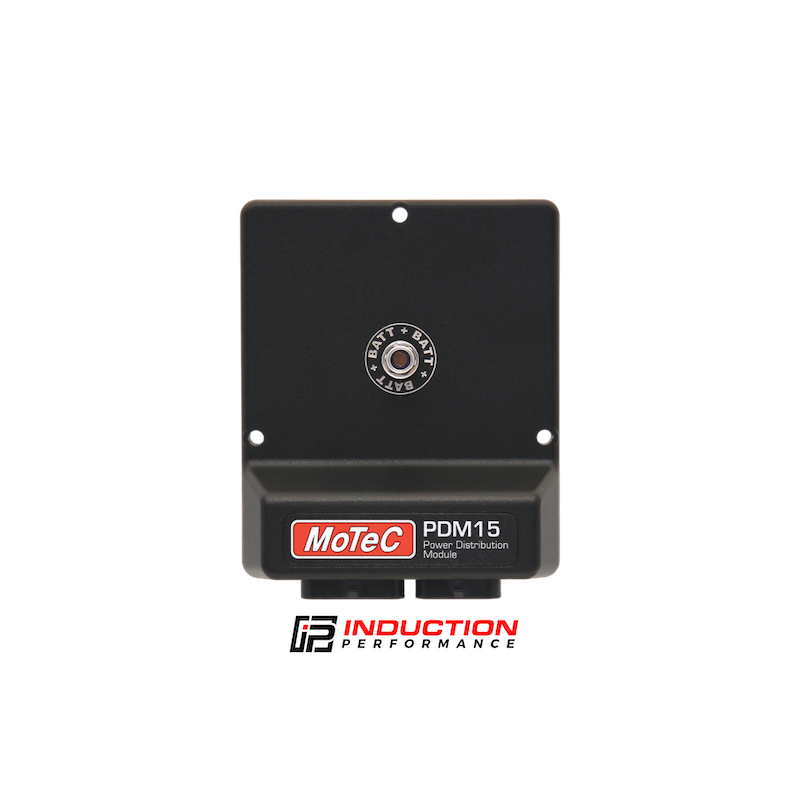

MoTeC PDM15 Power Distribution Module

$2,080.00

SKU: MoTeC PDM15
Description

MoTeC PDM15 Power Distribution Module

MoTeC’s new 15 output Power Distribution Module (PDM15) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight, while increasing reliability.

Outputs
  • 8 x 20 A outputs—20 A continuous, 115 A transient (typical)
  • 7 x 8 A outputs—8 A continuous, 60 A transient (typical)
Inputs
  • 16 x Switch inputs
Communications
  • 1 x CAN
Diagnostic Information
  • Output current and voltages
  • Input voltages
  • Error status
Physical
  • Connectors
    • 1 x 34 pin waterproof connector
    • 1 x 26 pin waterproof connector
    • 1 x M6 stud
  • Case size 108 x 128 x 39 mm
  • Weight 260 gram
