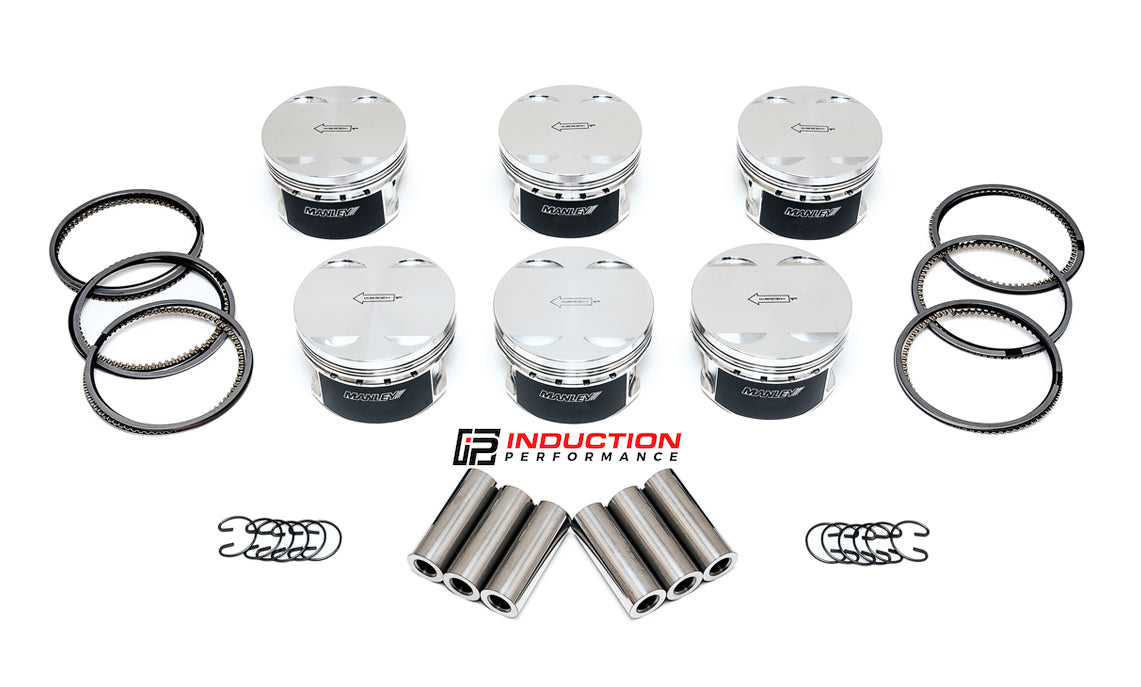

Manley Performance Turbo Tuff Piston Set Toyota Supra 2JZGTE 2JZ-GTE - 87mm 10.0:1 609310CE-6

$1,267.50 $1,107.80

SKU: 609310CE-6
Description

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts and will accommodate +1mm valve sizes. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge.

Features:

  • 2618 alloy for maximum high temperature strength and fatigue resistance.
  • "Contour forgings" provide the optimum balance between strength and weight with no grain-interrupting internal milling.
  • Proprietary multi-step top ring groove machining process assures optimum control of the groove's size, geometry, flatness, and finish.
  • All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall.
  • Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity.
  • Value - added features such as a pressure balance groove included in all series.
  • Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity.
  • Manley Sport Compact Platinum series pistons come complete with pistons, rings, pins, and locks

Turbo Tuff Features:

  • 2618 high strength material
  • 2.250 x .250" wall 9310 alloy pin included P/N 42552
  • Moly Coated Skirts
  • Pressure balance groove
  • Will accommodate +1mm valve sizes
  • Vertical Gas Ports designed for high HP Race Engines
  • Premium Steel top rings with Napier seconds and round wire locks included
  • Recommended piston clearance .0035" measured .850" from the bottom of the oil ring

Specifications:

Compression Ratio 10.0:1
Bore Diameter 87mm
Pin Size 0.866" x 2.250" x .250"
Pin Material 9310 Steel
Included Ring Set 47870-6
Piston Weight TBA
Head cc 45 cc
Dome cc -1 cc
Compression Height 1.328"
Stroke 86mm
Rod Length 5.590" / 142mm
Piston Material 2618
