GSC Power-Division Conical Valve Springs with Ti Retainers for Nissan GTR R35 VR38DETT

$992.75 $843.84

SKU: 5068
Description

GSC Power-Division Conical Valve Springs with Ti Retainers for Nissan GTR R35 VR38DETT

Part # GSC 5068


GSC Conical Valve Springs with Ti Retainers for Nissan GTR R35 VR38DETT
Setup Coil Bind (in) Install Height (in) Seat Pressure (lbs) Open Pressure, 11.30mm lift Maximum Valve Lift (in)
Conical 0.807 1.324 / 1.306 82 / 88 229 lbs @ 0.879" / 235 lbs @ 0.861" 0.453
  • Max RPM:  9,000 RPM
  • Max boost: 40 psi
  • 1,500 HP

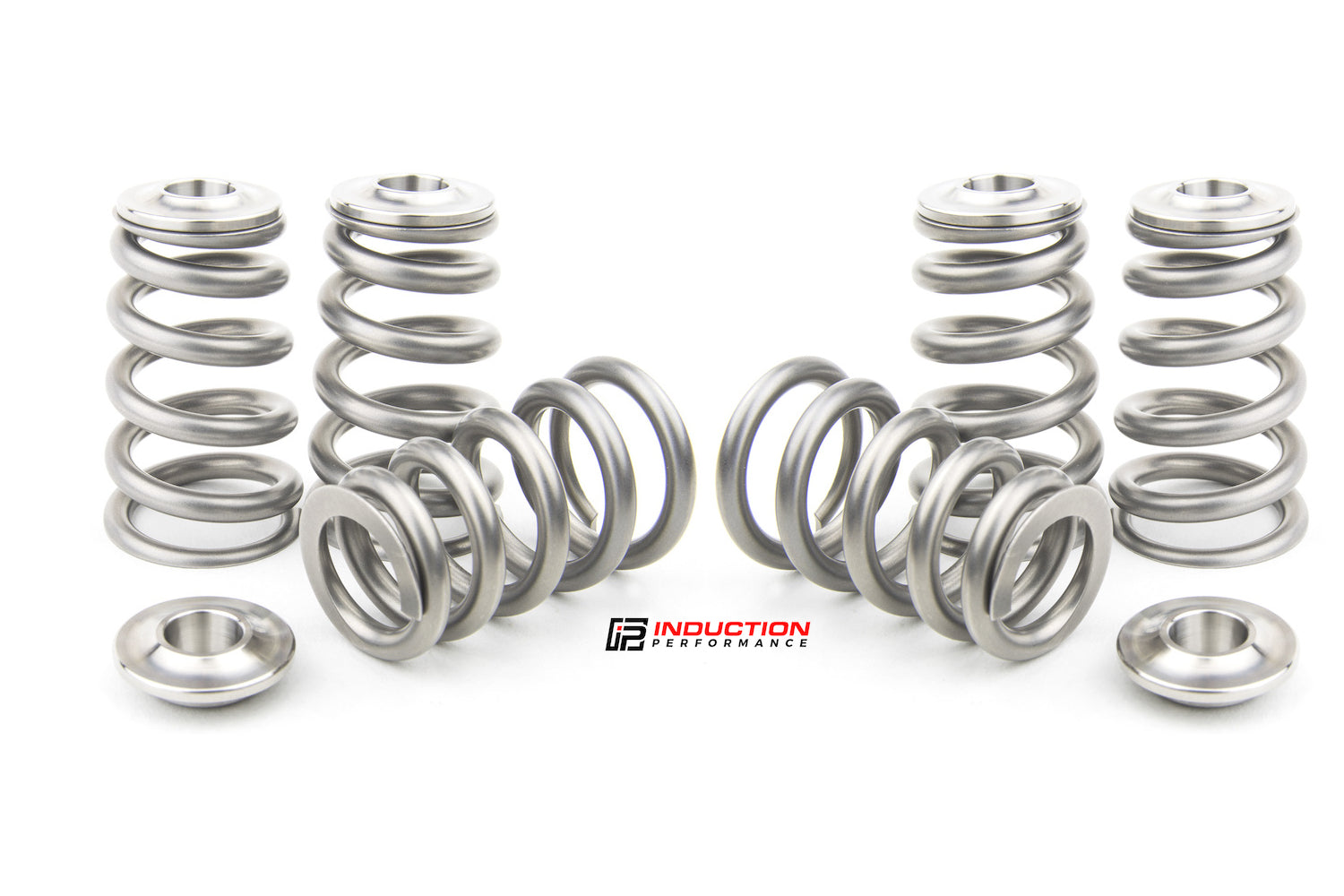

Ths GSC Power-Division Conical Valve Spring Kit with Ti Retainer for the Nissan VR38DET includes 24 titanium retainers, 24 conical valve springs, and 24 valvle spring shims. True conical valve springs are not a new concept and are industry proven to provide several key advantages over traditional spring designs. A major advantage of conical springs vs. traditional cylindrical or beehive springs is the damping and removal of valvetrain harmonics. Of the three designs, conical springs are the front runners in valvetrain harmonic stability. Utilizing a varying coil diameter as well as coil spacing, a conical spring acts as a natural harmonic damper in the transfer of valvetrain shock. This translates to less stress, less wear, and a longer life of the included components. This level of protection is needed in today’s engines being pushed to their physical and mechanical limits by aftermarket modifications. Every GSC conical spring offers a superfinished surface treatment to go along with the patented, multi-step heat treatment process. The finished product is an extremely reliable, high-performance spring allowing the users to push higher RPMs, use more aggressive cam profiles, and turn up higher boost pressures.

Conical Spring Benefits:

  • Vastly improved harmonic stability with inherent self-damping design
  • Smaller design = weight reduction throughout the entire valvetrain system
  • Applications for high RPM and boost pressure with the ability to run more aggressive camshafts
  • State of the art manufacturing and engineering production processes
