BT Innovations is still operational during this pandemic. However, they have had a record number of orders and are running into supply chain issues. Given that BTI products are handmade in the USA, this means that orders are taking longer to fill than expected. Current lead times are pushing 3-4 weeks from date of order. We appreciate your patience during this period.

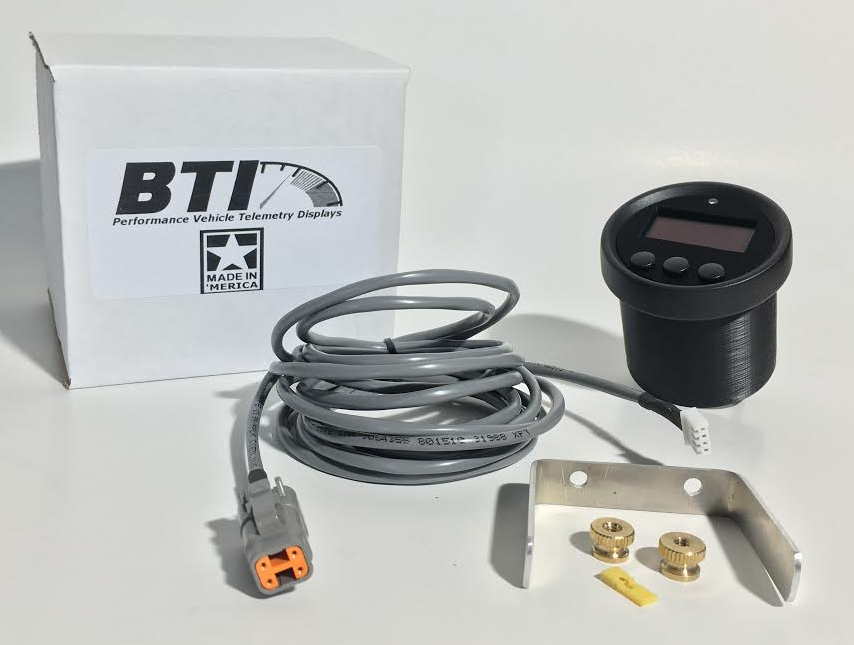

BTI CAN Gauge (52mm/60mm) for ProEFI

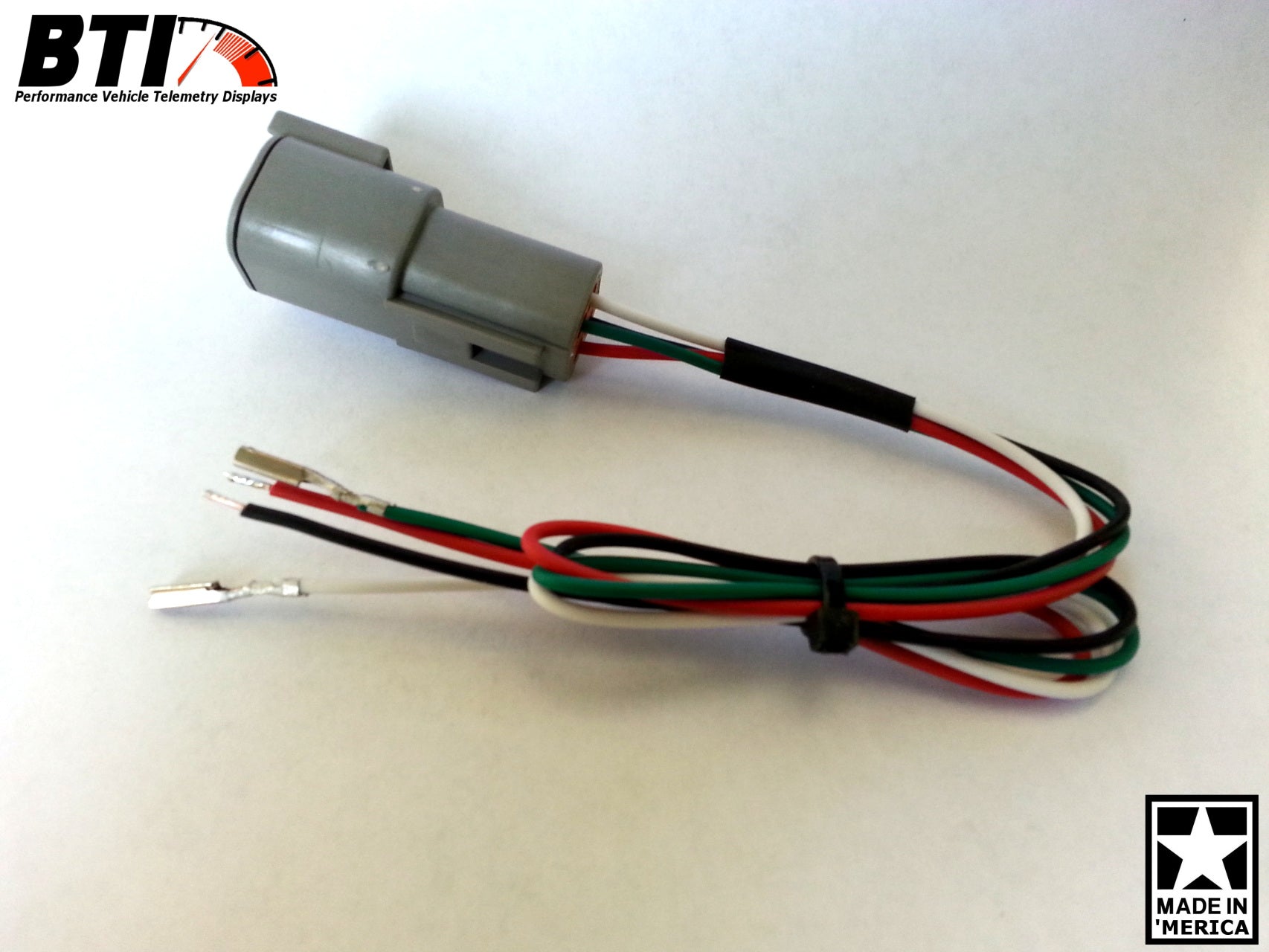

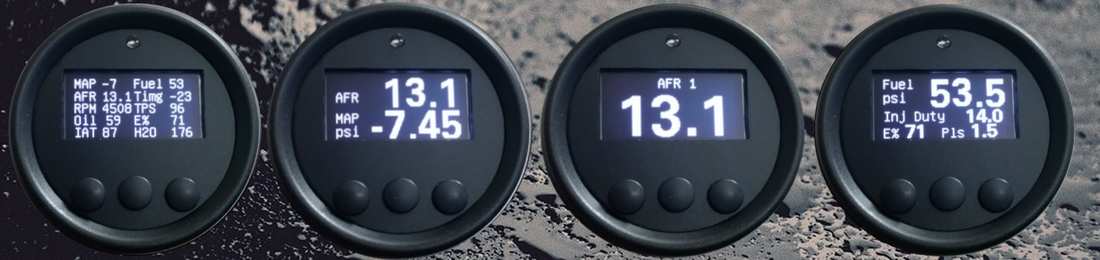

The BTI 52mm and 60mm CAN gauge with ProEFI integration is capable of displaying parameters on 12 programmable screens.  View telemetry data exactly as the ECU sees them with a fairly simple 4 wire termination.

There are compound parameter screens that include a peak hold function for boost. wheel slip, and knock energy.

The shift light is programmable by gear.

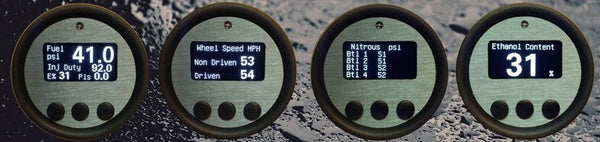

Parameters available on ProEFI ECUs

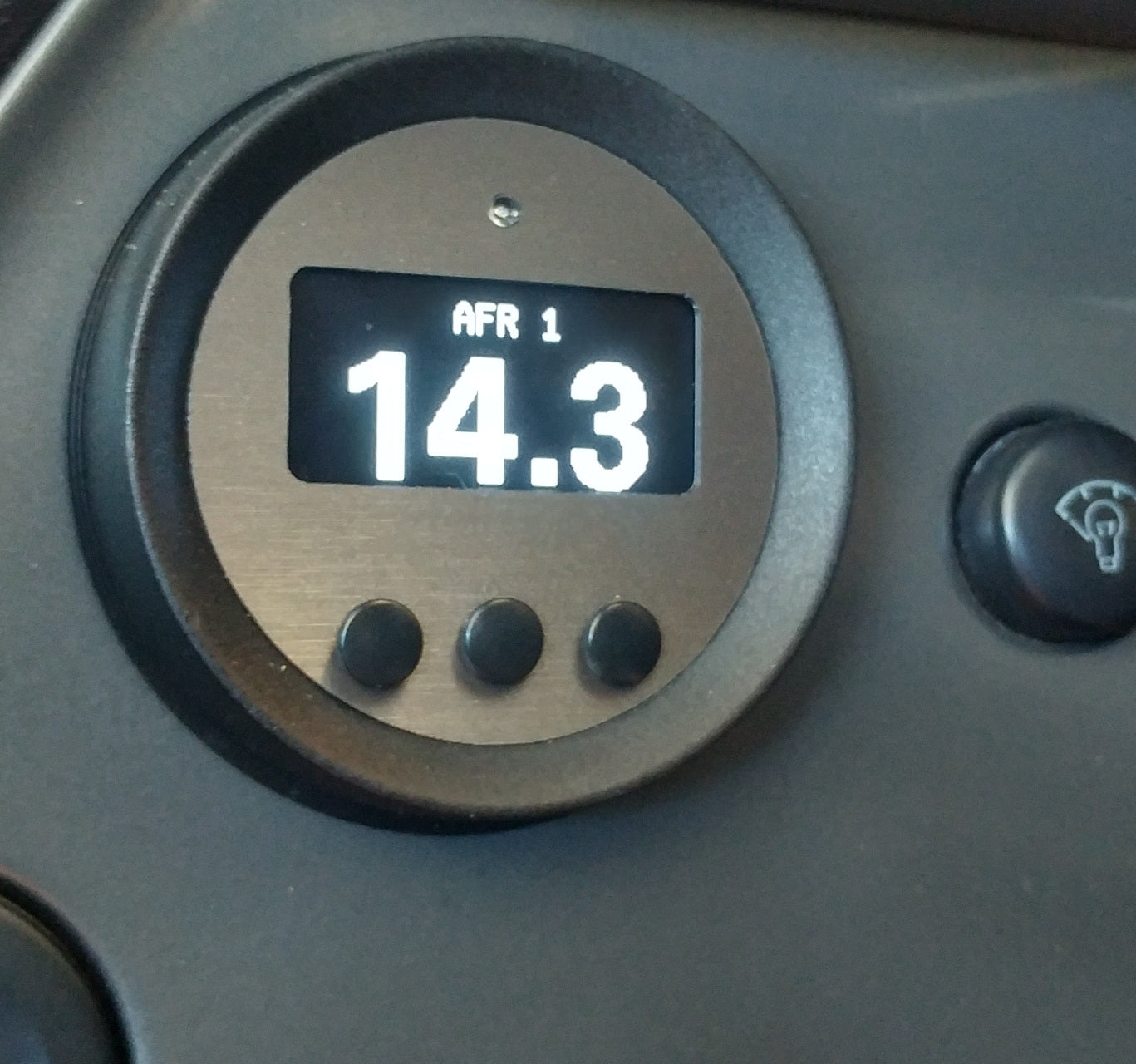

  • Lambda 1 / AFR 1
  • Lambda2 / AFR 2
  • Lambda Average (Lambda 1 + Lambda2 divided by 2)
  • AFR Average (AFR1 + AFR2 divided by 2)
  • Lambda Target
  • AFR Target
  • Manifold Air Pressure (Kpa or psi)
  • Fuel Pressure (psi)
  • Oil Pressure (psi)
  • Intake Air Temperature (Celsius or Fahrenheit)
  • Coolant Temperature (Celsius or Fahrenheit)
  • Engine Speed (RPM) / Rev Limit
  • Ignition Timing
  • Battery Volts
  • Throttle percentage
  • Engine Torque
  • Horsepower
  • Ethanol Content (%)
  • Vehicle Speed (MPH)
  • Calculated Gear
  • Driven / Non-Driven Wheel speed
  • Differential Wheel Speed / Differential Wheel Speed Allowed
  • TCS Spark
  • Mas g/sec (MAF airflow)
  • EGT 1 & 2
  • Exhaust Back Pressure
  • Nitrous Pressure (1-4)
  • Injector 1 Pulse width (ms)
  • Injector Lambda Feedback
  • Injector Duty Cycle (%)
  • Air Box Temp (Celsius or Fahrenheit)
  • Oil Temperature (Celsius or Fahrenheit)
  • Mode Switch
  • Transmission Temperature (Celsius or Fahrenheit)
  • AT Shifter Position
  • Torque Converter State
  • Turbo Speed (RPM) 1 & 2
  • Wastegate Duty Cycle
  • Knock Energy (1-8)
  • RPM Rev limit
  • I Boost Position
  • Final A/F 1 & 2
  • Desired A/T Gear
  • Transmission Pressure

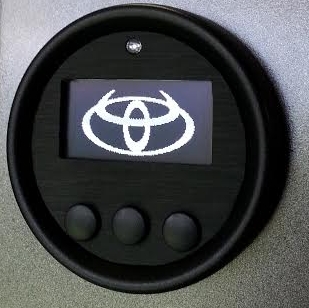

Custom Splash Screen ($25.00): We can insert a custom splash screen that will pop up when you turn on the vehicle. Note that the images must be converted to a black and white image.

60 mm option ($30.00):
This option will increase the gauge size to 60mm. The 60mm gauge has a larger display and retains the exact functionality as the 52mm gauge
