BT Innovations // BTI Gauges CAN Gauge (52mm/60mm) for Haltech

$375.00 – $430.00

Yes (Send Image to

***COVID19 Notice***

BT Innovations is still operational during this pandemic. However, they have had a record number of orders and are running into supply chain issues. Given that BTI products are handmade in the USA, this means that orders are taking longer to fill than expected. Current lead times are pushing 3-4 weeks from date of order. We appreciate your patience during this period.

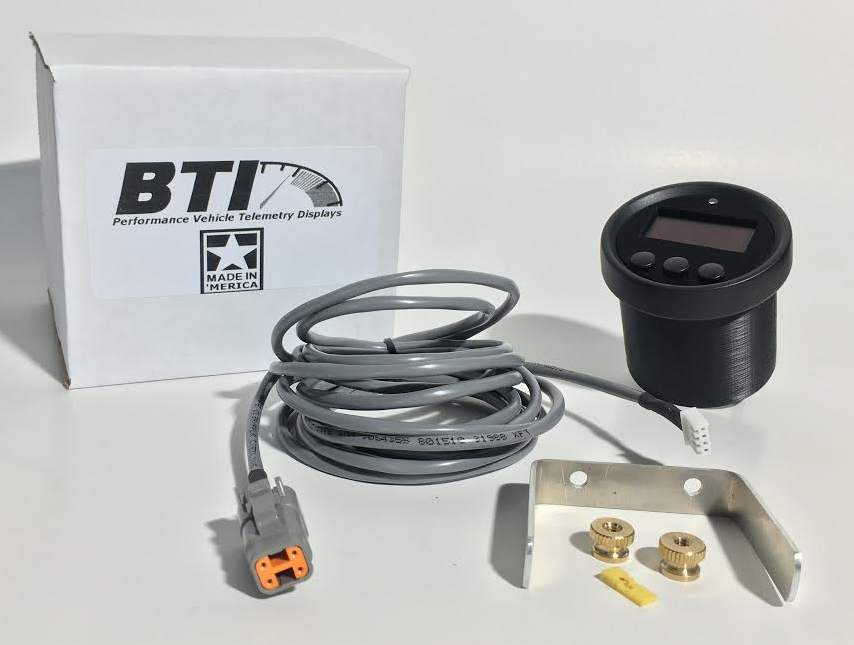

BTI CAN Gauge (52mm/60mm) for Haltech

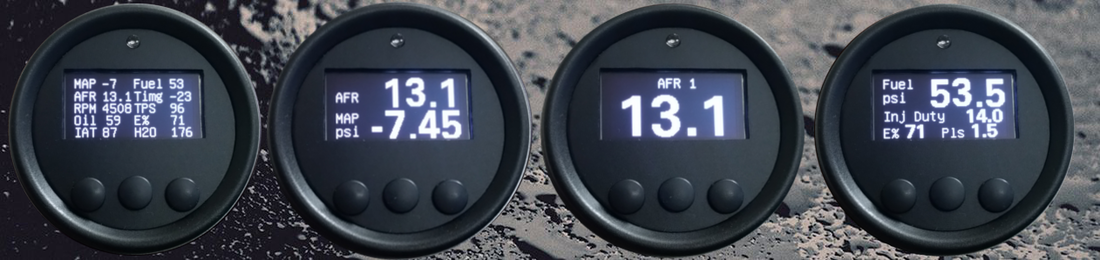

The BTI CAN gauge programmed for Haltech Integration allows for the selection of 12 user programmable screens.  Each of the 12 screens can be programmed with a single parameter (listed below) or you may also select compound parameter screens which display multiple parameters in an easy to read fashion. Several of the compound parameter screens include a Peak-Hold function that allows you to keep your eyes on the road. The Boost screen shows the peak boost in between boost episodes. This gauge includes an orange shift light that is programmable by gear.

Parameters available on Haltech ECUs (Elite, Sport, Pro, Sprint)

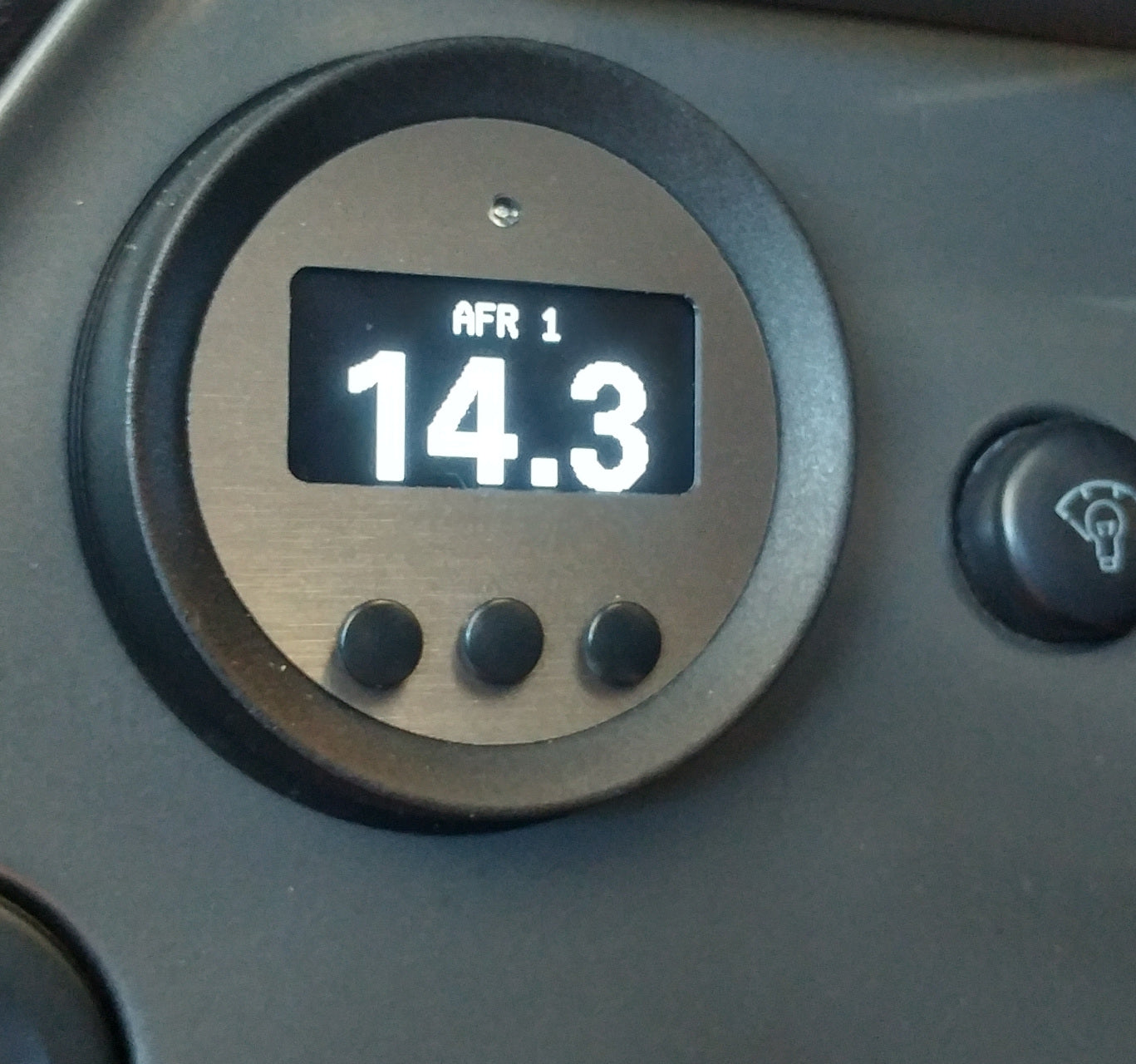

  • Lambda 1 / AFR 1
  • Lambda2 / AFR 2
  • Lambda 3 / AFR 3
  • Lambda4 / AFR 4
  • Lambda Target
  • AFR Target
  • Manifold Air Pressure (kPa or psi)
  • Fuel Pressure (kPa or psi)
  • Oil Pressure (kPa or psi)
  • Intake Air Temperature (Celsius or Fahrenheit)
  • Coolant Temperature (Celsius or Fahrenheit)
  • Engine Speed (RPM)
  • Ignition Timing
  • Battery Volts
  • Throttle percentage
  • Ethanol Content (%)
  • Vehicle Speed (KPH or MPH)
  • Individual Wheel Speed (KPH or MPH)
  • Calculated Gear
  • Exhaust Gas Temp 1 & 2  (Celsius or Fahrenheit)
  • Barometric Pressure (kPa)
  • Fuel Trims 1 & 2 (long Term and Short Term %)
  • Turbo Timer (ignition status and time)
  • Engine Demand (%)
  • Acceleration / latitude & Longitude (SI or SAE)
  • Fuel Flow & Return (cc/min or g/h)
  • Nitrous Pressure 1-4 ( kPa or psi)
  • Injector 1 Pulse width (ms)
  • Engine Knock
  • Injector Duty Cycle (%)
  • Air Box Temp (Celsius or Fahrenheit)
  • Oil Temperature (Celsius or Fahrenheit)
  • Fuel Temperature (Celsius or Fahrenheit)
  • Transmission Temperature (Celsius or Fahrenheit)
  • Differential Temperature (Celsius or Fahrenheit)
  • Turbo Speed (RPM)
  • Traction Control  Slip
  • Traction Control Differential

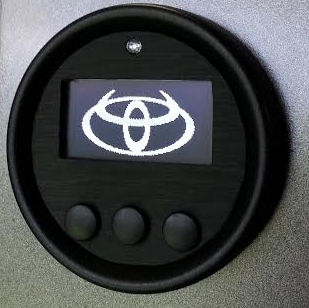

Custom Splash Screen ($25.00): We can insert a custom splash screen that will pop up when you turn on the vehicle. Note that the images must be converted to a black and white image.

60 mm option ($30.00): This option will increase the gauge size to 60mm. The 60mm gauge has a larger display and retains the exact functionality as the 52mm gauge
