BT Innovations // BTI Gauges CAN Gauge (52mm/60mm) for AEM V2

$375.00 – $430.00

Yes (Send Image to

***COVID19 Notice***

BT Innovations is still operational during this pandemic. However, they have had a record number of orders and are running into supply chain issues. Given that BTI products are handmade in the USA, this means that orders are taking longer to fill than expected. Current lead times are pushing 3-4 weeks from date of order. We appreciate your patience during this period.

BTI CAN Gauge (52mm/60mm) for AEM V2

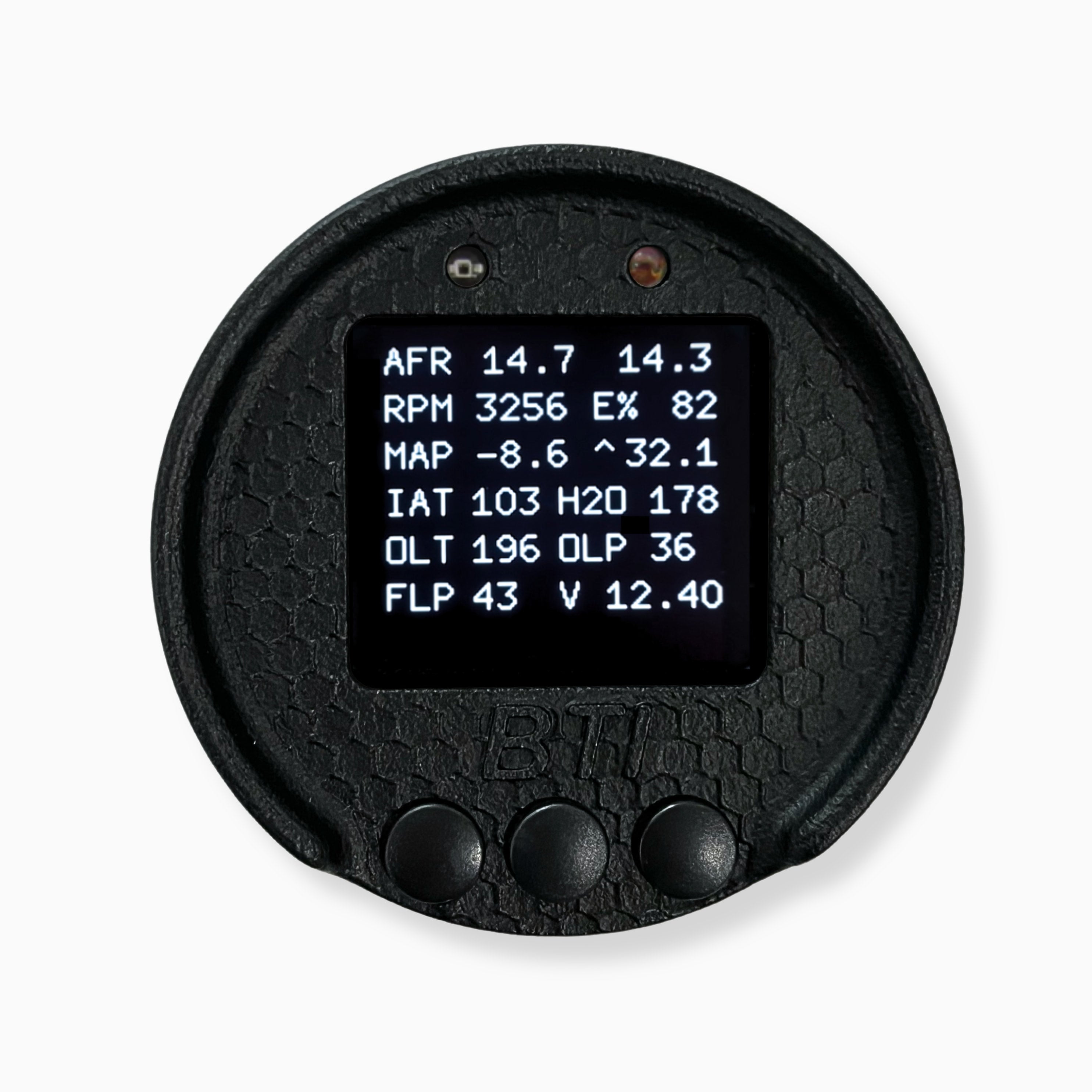

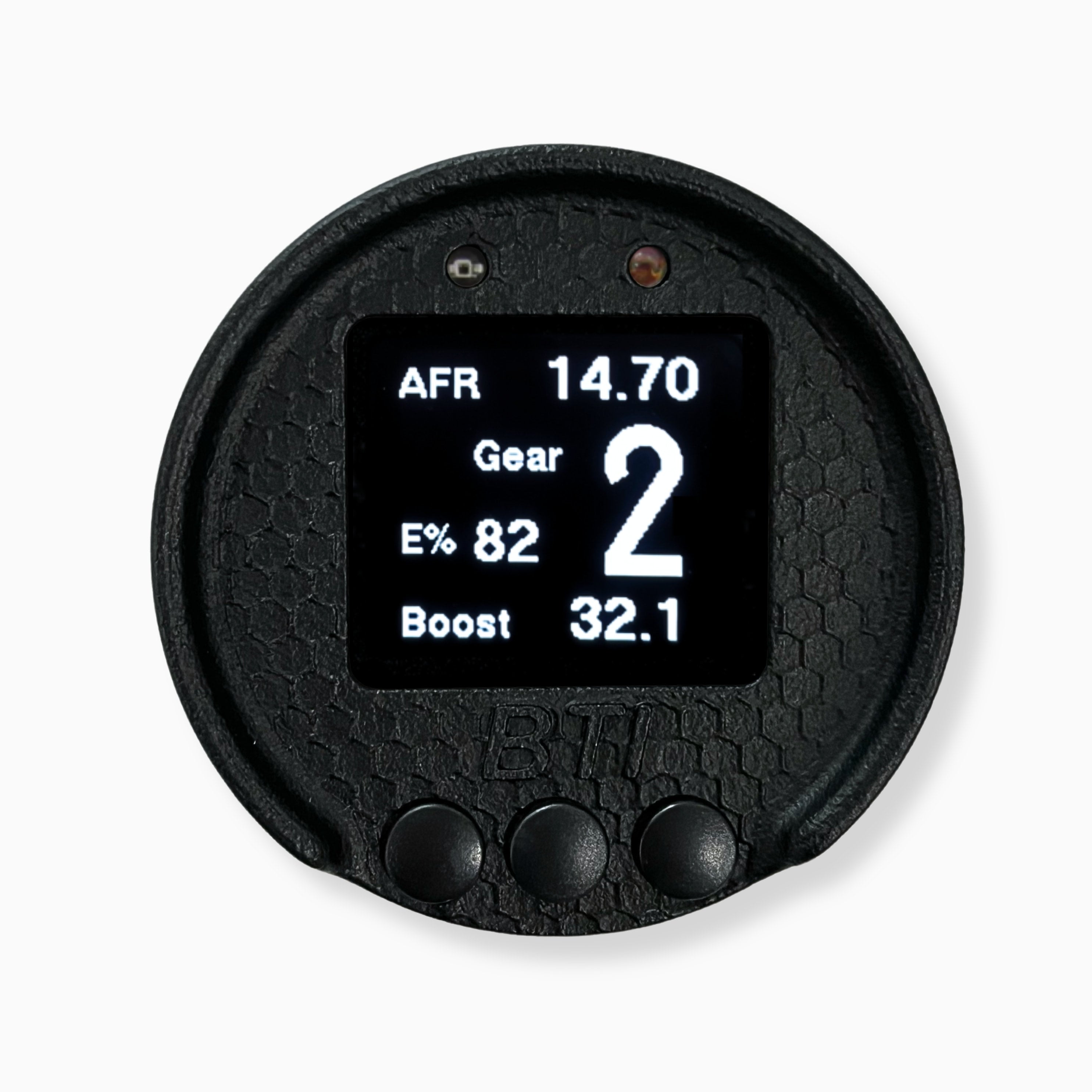

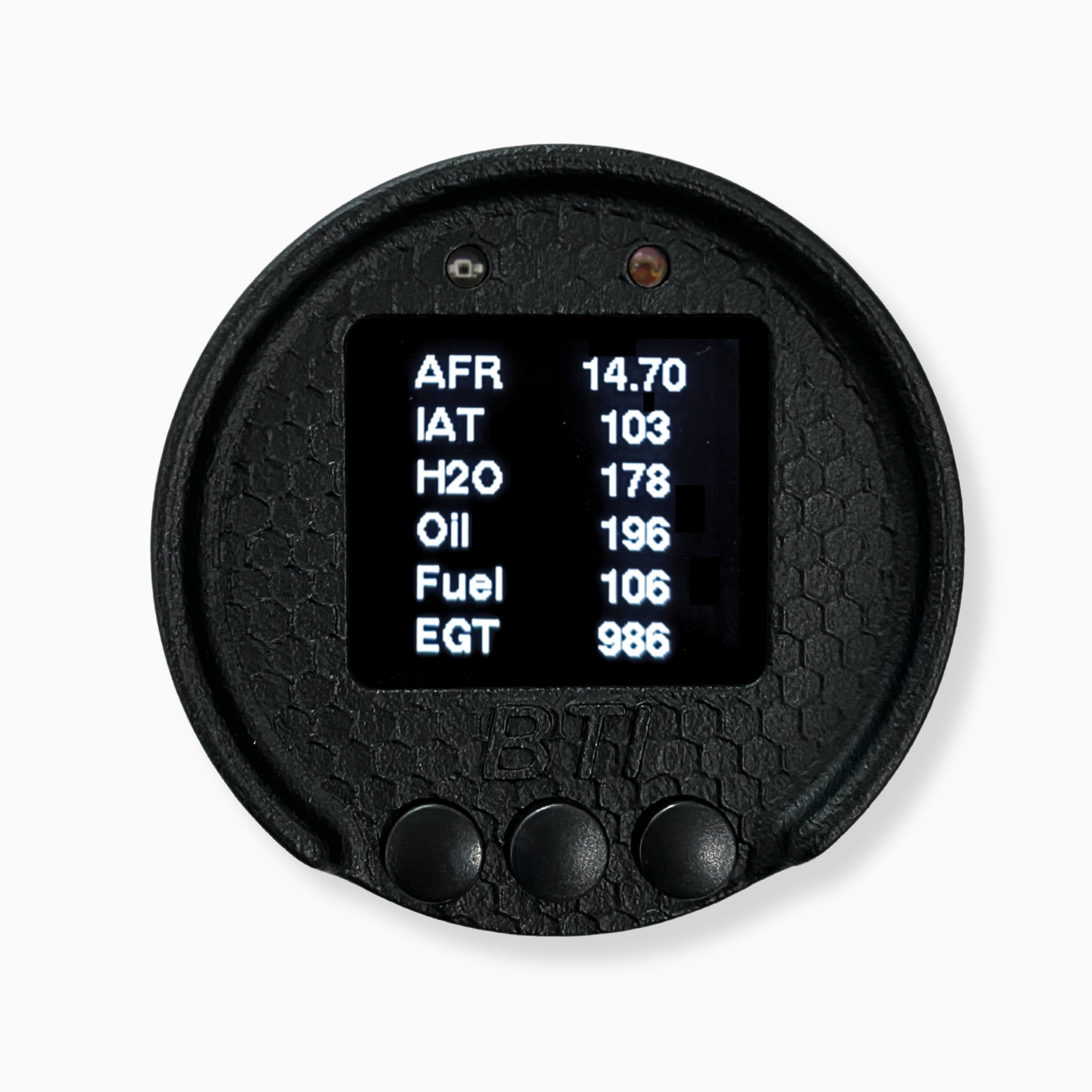

The BTI CAN gauge programmed for AEM V2 / EMS-4 Integration allows for the selection of 12 user programmable screens.  Each of the 12 screens can be programmed with a single parameter (listed below) or you may also select compound parameter screens which display multiple parameters in an easy to read fashion.

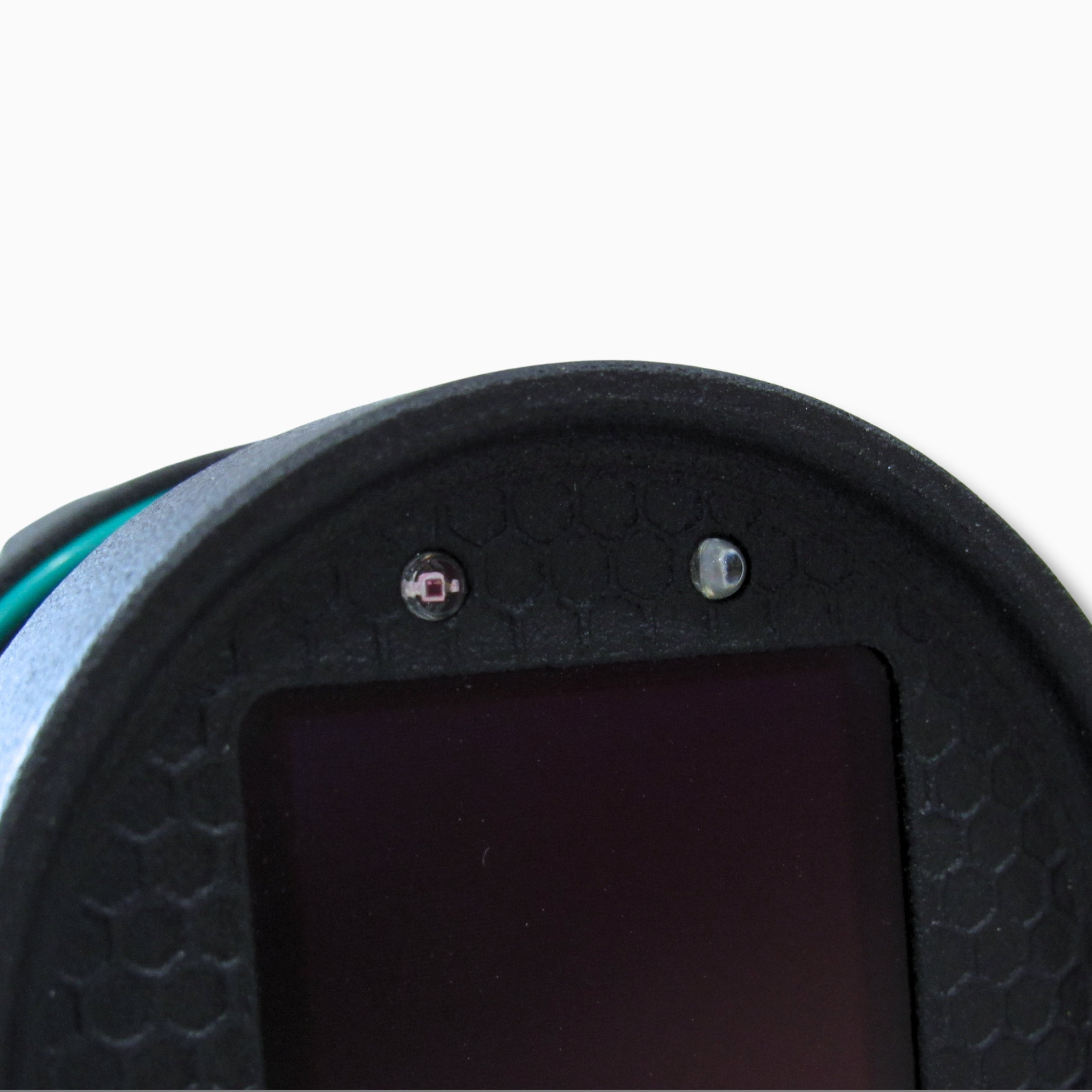

This gauge includes an orange shift light is programmable by gear.

Manifold Air Pressure, Fuel Pressure, Intake Air Temperature, Coolant Temperature, and Engine Speed all have a user re-settable peak hold feature.

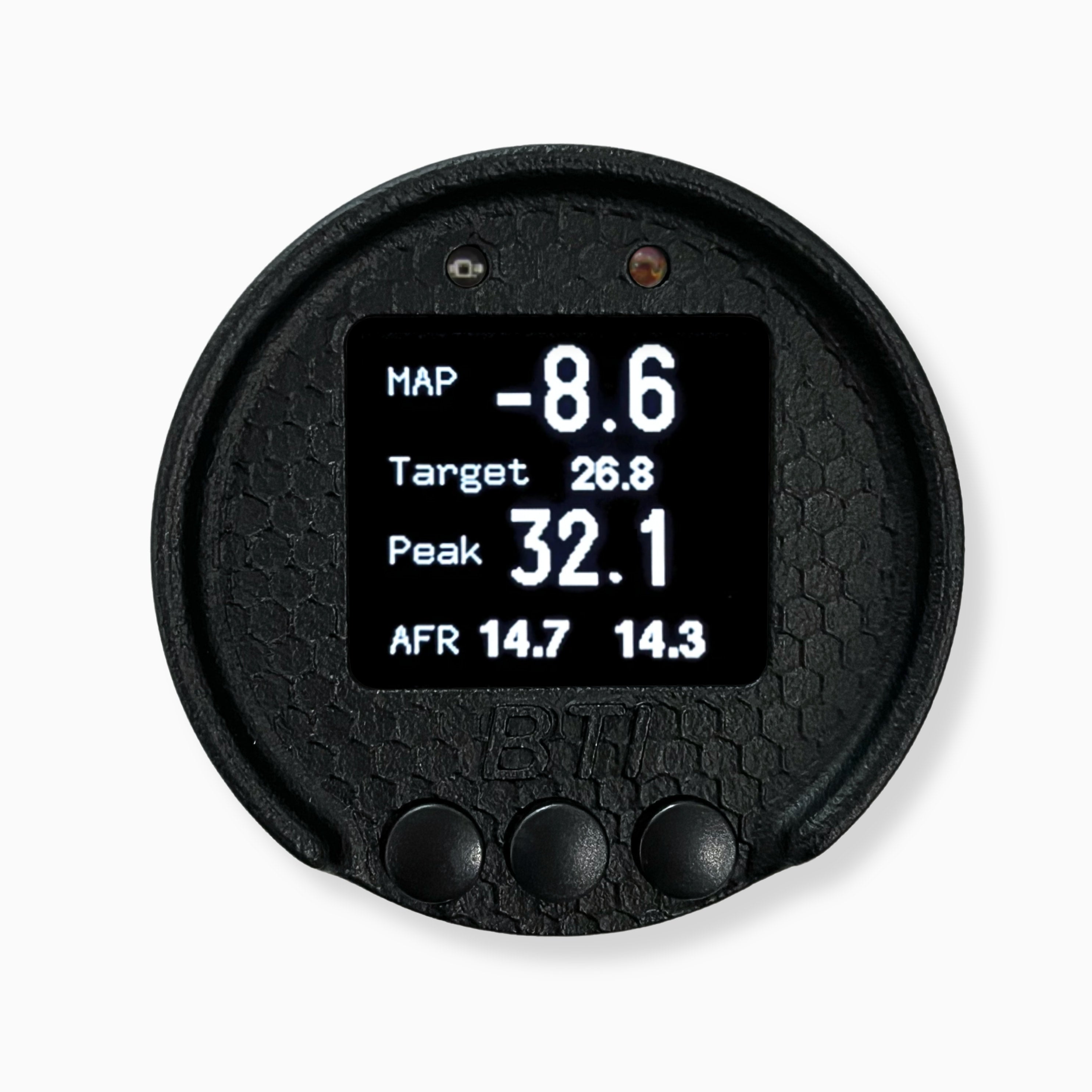

The Boost screen shows the peak boost in between boost episodes.

Parameters available on AEM V2 and EMS-4 ECUs

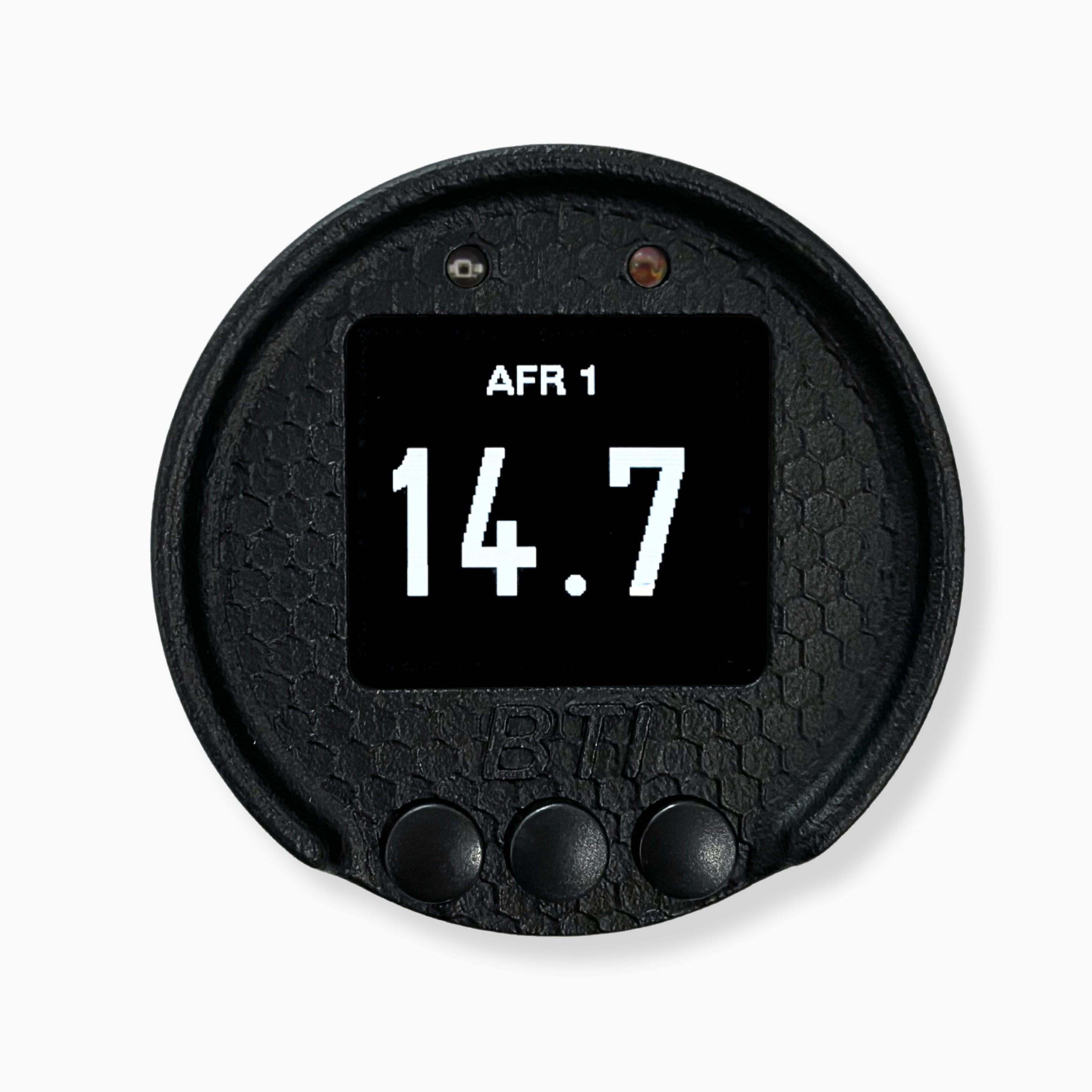

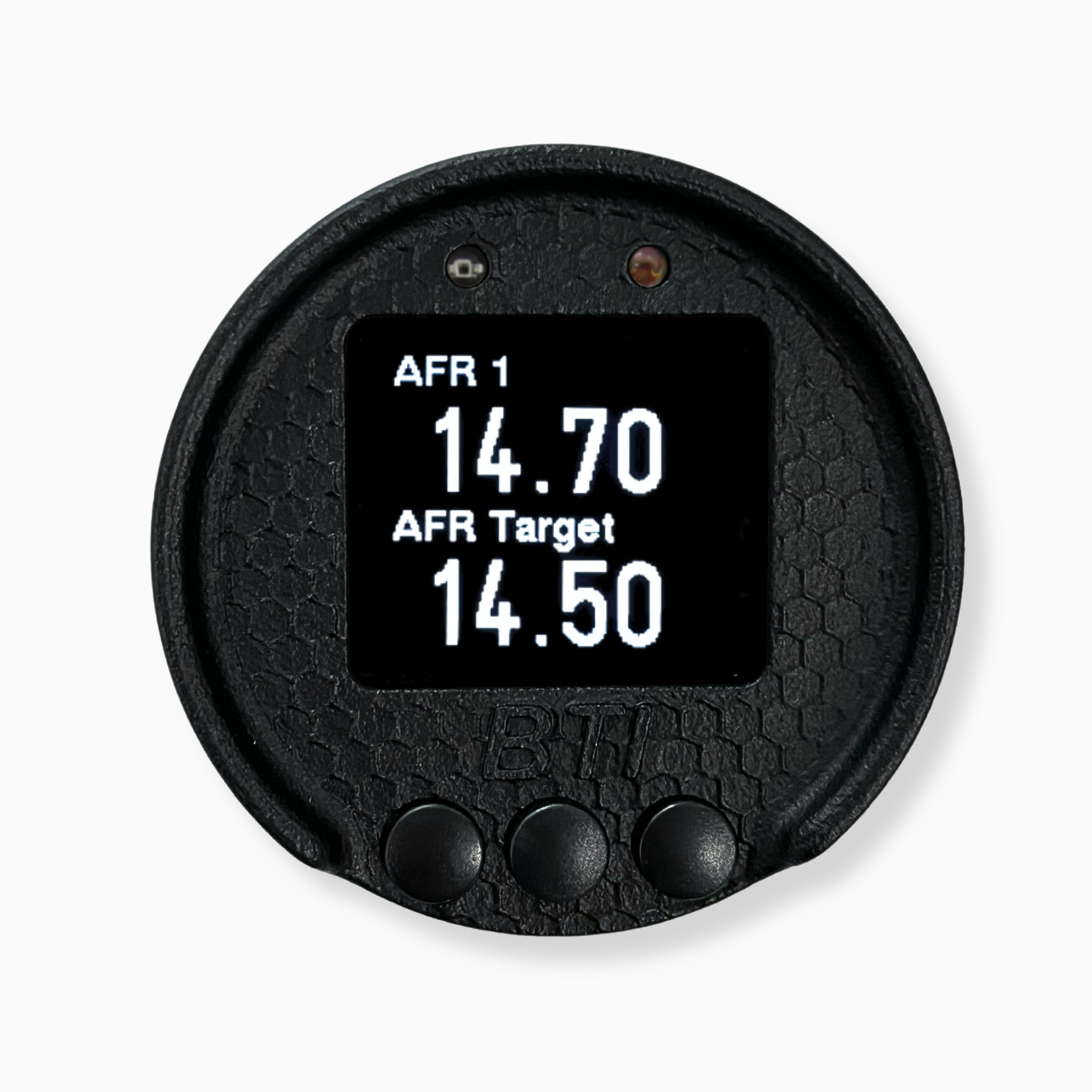

  • Lambda 1 / AFR 1
  • Lambda2 / AFR 2
  • Lambda Average (Lambda 1 + Lambda2 divided by 2)
  • AFR Average (AFR1 + AFR2 divided by 2)
  • Manifold Air Pressure (Kpa or psi) Peak - Hold
  • Fuel Pressure (psi) Peak -  Hold
  • Intake Air Temperature (Celsius or Fahrenheit) Peak - Hold
  • Coolant Temperature (Celsius or Fahrenheit) Peak - Hold
  • Engine Speed (RPM) Peak -  Hold
  • Ignition Timing
  • Battery Volts
  • Throttle percentage
  • Vehicle Speed (MPH)
  • Calculated Gear
  • Ethanol Content

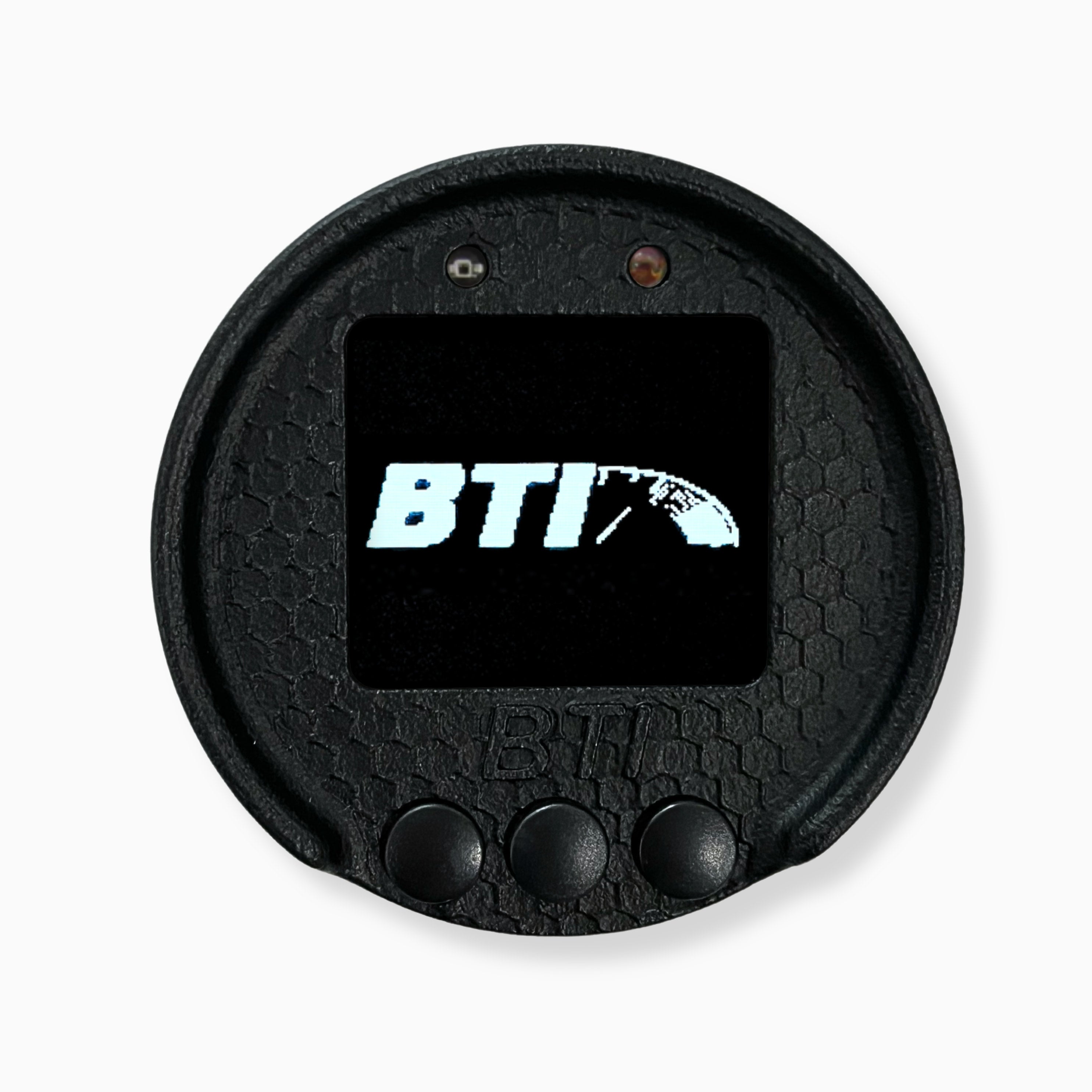

Custom Splash Screen ($25.00): We can insert a custom splash screen that will pop up when you turn on the vehicle. Note that the images must be converted to a black and white image.

60 mm option ($30.00):
This option will increase the gauge size to 60mm. The 60mm gauge has a larger display and retains the exact functionality as the 52mm gauge
