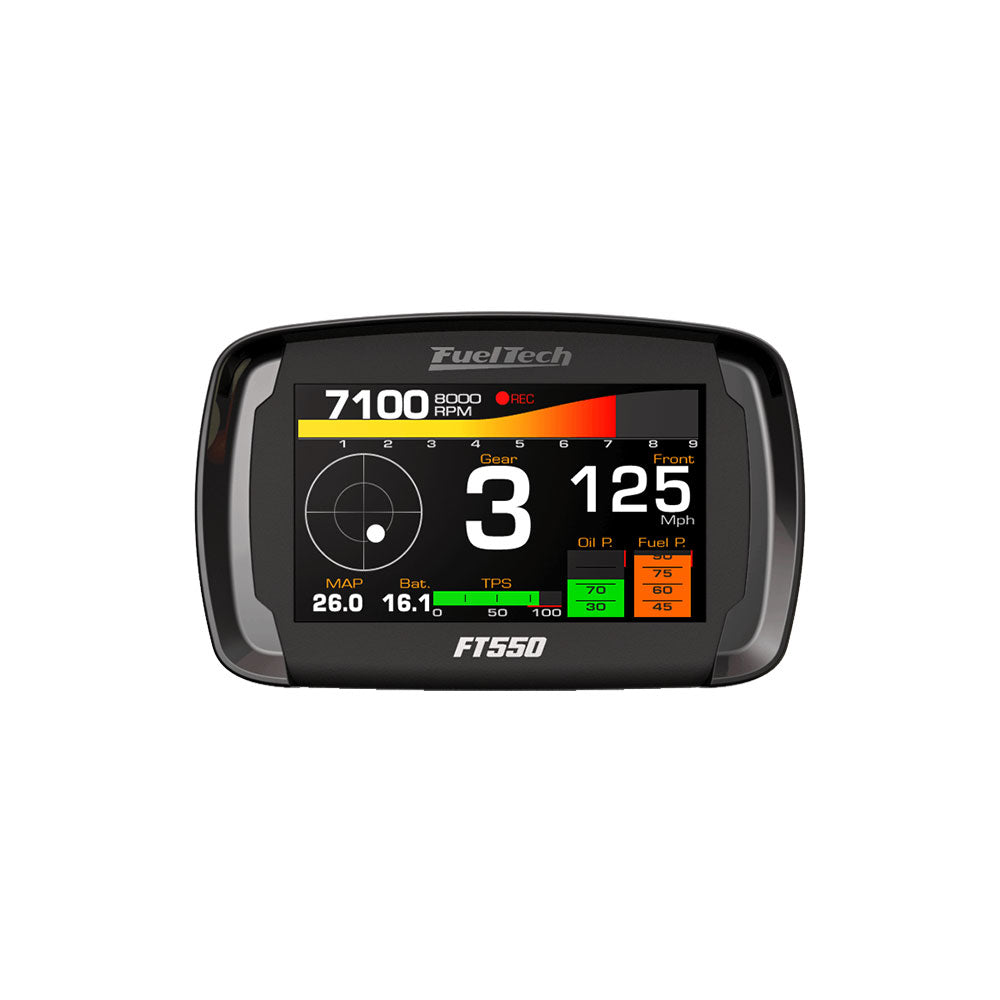

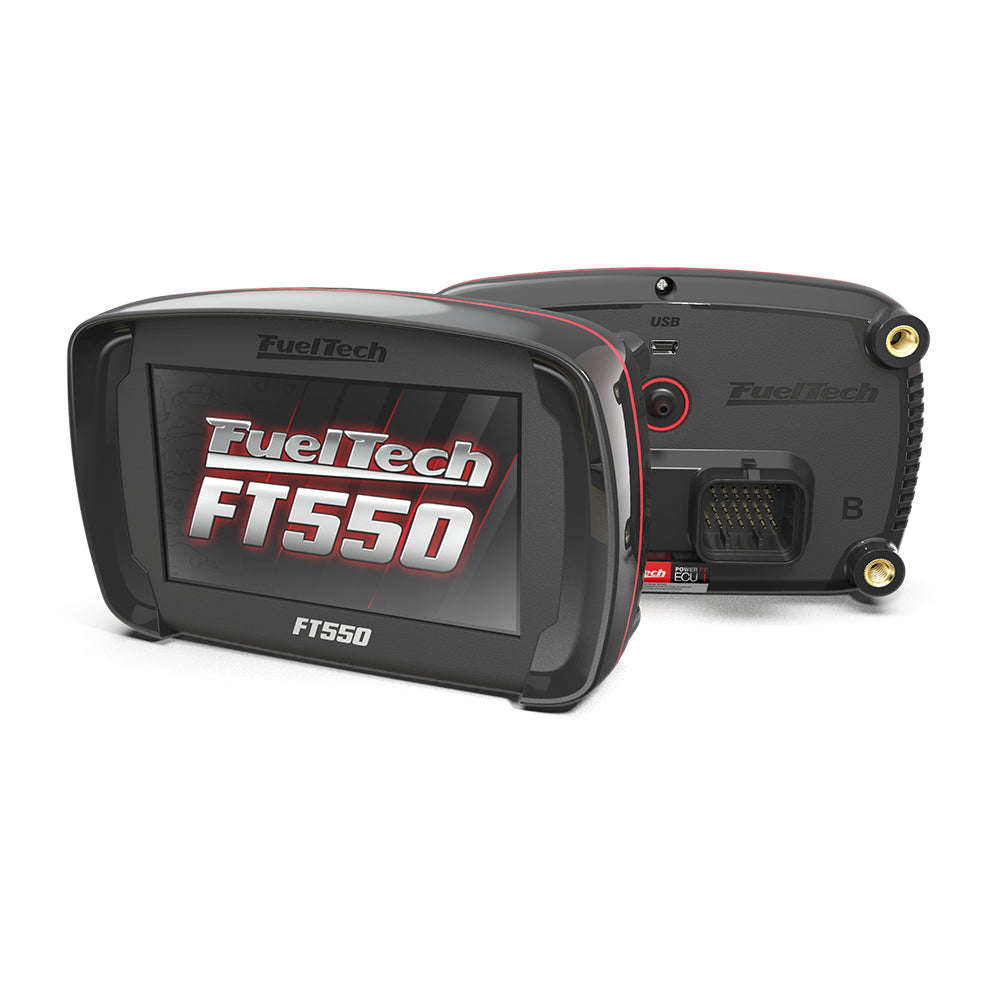

FT550 EFI System ECU
FuelTech FT550 Aftermarket ECU for Racing with EFI

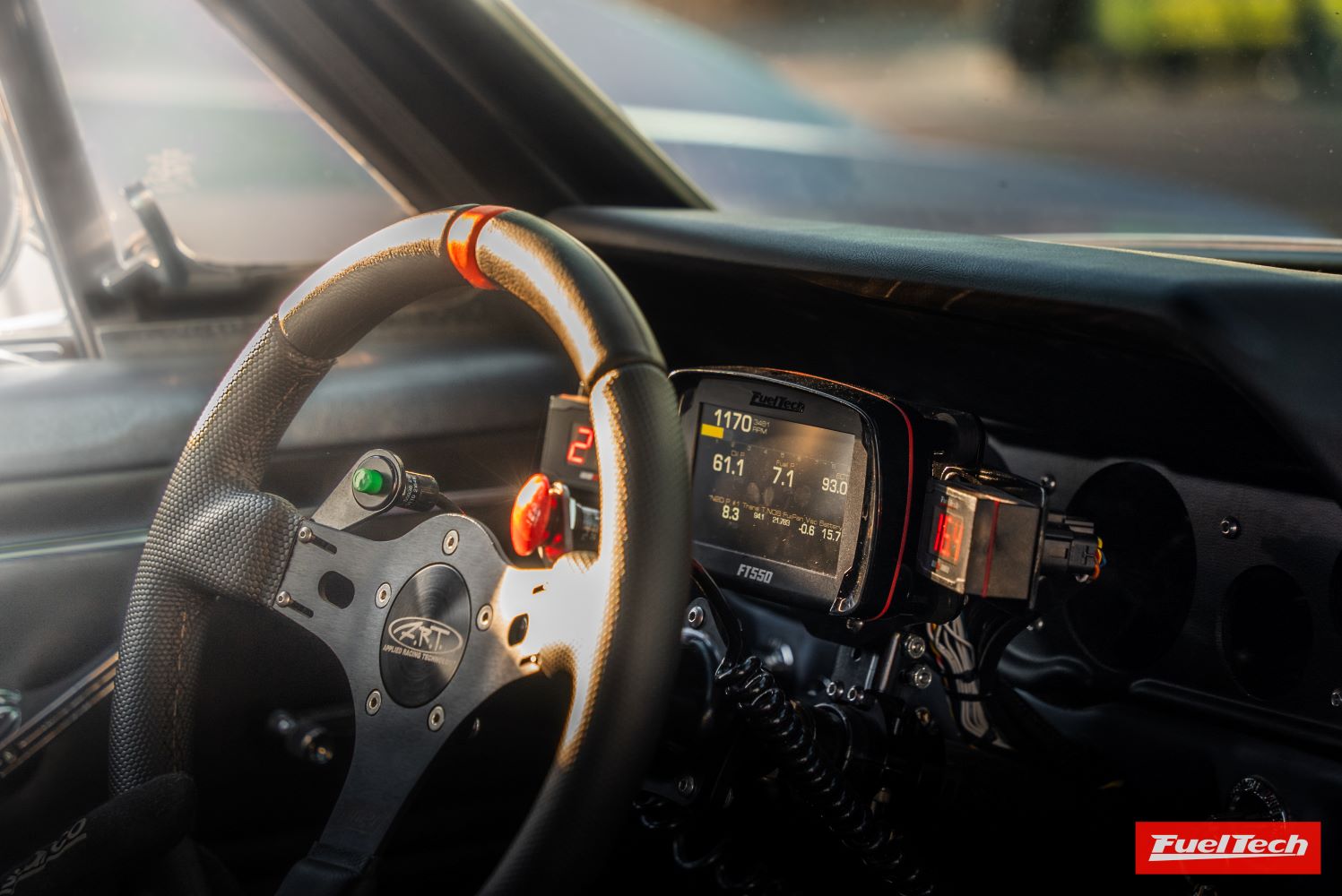

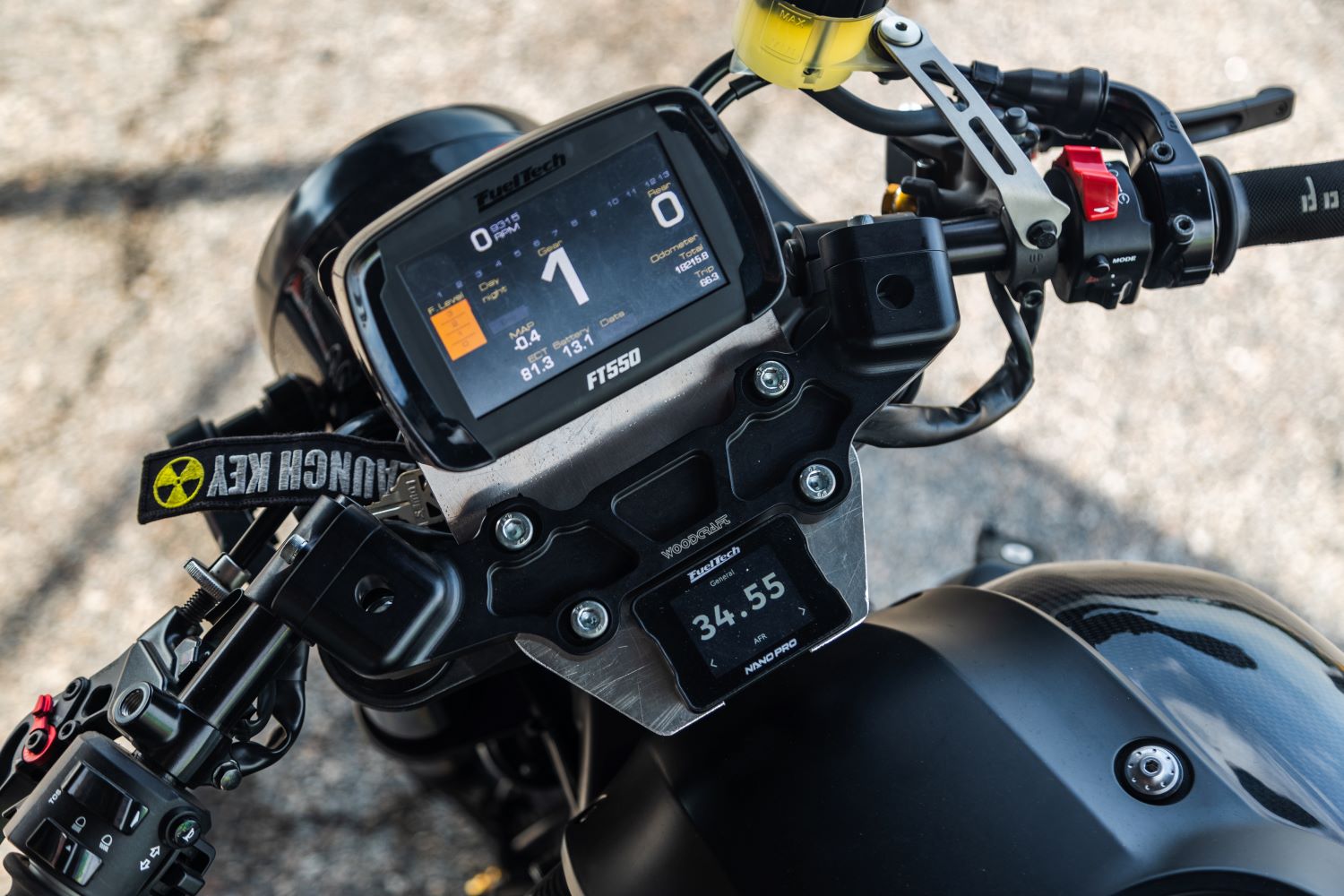

FuelTech Aftermarket FT550 ECU with Digital Display on Racing Motorcycle
FuelTech FT550 Aftermarket Engine Management System with EFI
Click to enlargeClick to enlarge

FT550 EFI System ECU

$1,699.00 – $2,998.00

w/o harness
w/ connector kit
w/ 10ft unterminated harnesses
w/ 20ft unterminated harnesses
w/ FT500 to FT550 adapter harness
w/ FT400 to FT550 adapter harness
w/ LS550 V8 complete harness
w/ PRO550 complete harness
w/ 4 cylinder A & B complete harnesses
w/ 6 cylinder A & B complete harnesses
w/ 2019-2024 Yamaha 1800 Adapter Harness
w/ Sea Doo 300 PNP Harness
$1,699.00
SKU: 3010005496
Description
  • FuelTech's FT550 is more than an ECU offering electronic fuel injection, integrated dashboard, data acquisition, and power management. The FT550 is designed for engines with up to 12 cylinders, or up to 4 rotors, and features 14 programmable inputs and 24 outputs. In addition to offering all of the features and functions of the FT450, including touchscreen display, 4 programmable display screens, customizable splash screen, sequential injection and ignition, O2 closed loop, active traction control, integrated boost controller, internal datalogger, progressive and PRO-Nitrous controls, odometers, drag racing features, the FT550 is loaded with additional features such as electronic throttle control, inclinometer gauge, integrated GearController with strain gauge sensor on the shifter for more efficient gear shift cuts, built-in accelerometer (G-meter), and gyroscope. The FT550 is housed in a high-quality ABS case and is IP67 rated for marine and off-road applications.
  •  FT550 Manual
     FTManager Software
     FT550 CAD
