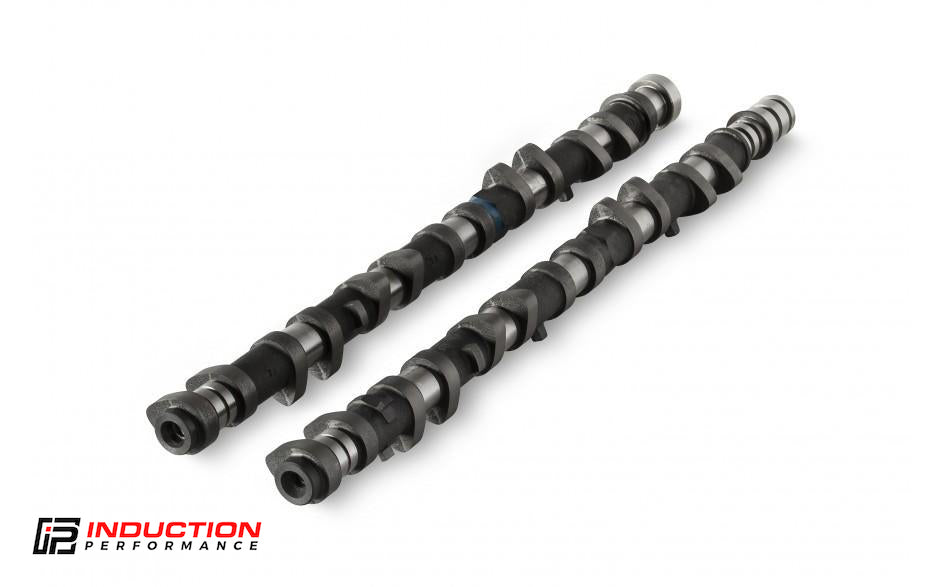

Kelford V202-B Camshafts Set for Toyota Supra 2JZ 2JZGTE VVTi
$909.00
Description
Kelford V202-B Camshafts Set for Toyota Supra 2JZ 2JZGTE VVTi
260 / 260 Degrees Advertised Duration.
9.35mm / 9.35mm Lift.
To suit Toyota Supra / 2JZ VVTi.
260 / 260 Degrees Advertised Duration.
9.35mm / 9.35mm Lift.
To suit Toyota Supra / 2JZ VVTi.
Additional Information
Street Performance Cams to suit engines with Turbo and ECU upgrades. Suits up to 30lb boost and 7500 RPM with our recommended valve spring.
Will also drop in on stock spring.
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 2JZ VVTi | V202-B | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 9.60mm | Exhaust: | 9.60mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.35mm | Exhaust: | 9.35mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 260 | Exhaust: | 260 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 222 | Exhaust: | 222 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 50 BBDC | |||
| IVC: | EVC: | 8 BTDC | |||||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | Exhaust: | 0.26mm | |||
