Domiworks Engineering Chevy LS / LT to Dodge 8HP70/75/90/95 Hemi Scat Pack Hellcat Transmission Adapter Kit

Domiworks Engineering Chevy LS/LT/SB/BB to 8HP 45/50/70/75/90 N57 B57 B58 N63 N73 N74 Adapter Kit

Part Number: 21004003

Chevy LS/LT (Gen III/IV/V) to Dodge 8HP70/75/90/95 Charger / Challenger / Scat Pack Hemi Hellcat Trackhawk Transmission Adapter Kit

Note! This kit supports both LS/LT long and short-nosed cranks. However, if you have a long-nosed crankshaft, you have to shorten the center guide to avoid bottoming it out on the Torque converter. The LS/LT engines with a factory dry-sump oil system will have a long-nosed crank.

Note: Will not fit C5 C6 C7 Corvette with Torque Tube or C8 Corvette models.

Note! Recommended to use a non-shrouded starter, otherwise you need to trim the gearbox bellhousing.

Adapter kit to fit a Dodge 8HP 70/75/90/95 Charger/Challenger Scat Pack Hellcat Trackhawk RAM Transmission to a Chevy LS/LT (Gen III/IV/V) Engine.

This adapter kit fits a transmission from the following models

• 8HP70/75 From Dodge Charger 5.7L Hemi / Challenger 5.7L Hemi / Scat Pack 6.4L Hemi Apache
• 8HP70/75 From RAM 1500 5.7L Hemi
• 8HP90 from Dodge Charger Hellcat / Challenger Hellcat
• 8HP95 from Jeep Grand Cherokee Trackhawk


Dodge RAM Ecodiesel transmissions have a separate adapter kit #21004006.

Adapter plate and converter adapter made out of high-grade aluminum and natural and black anodized for a premium feel and experience.

Adapter plate thickness is 25mm.

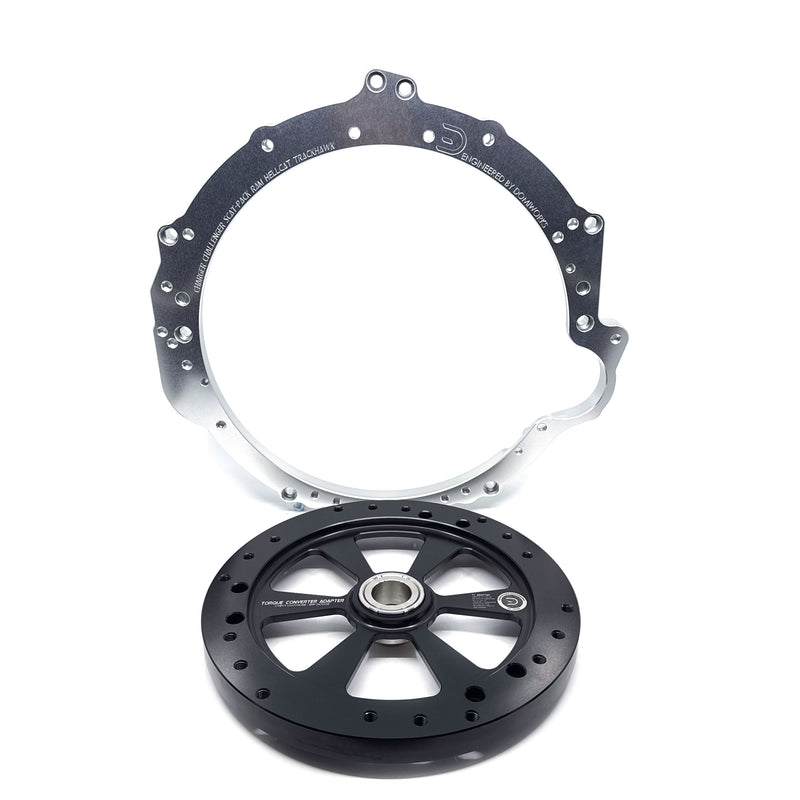

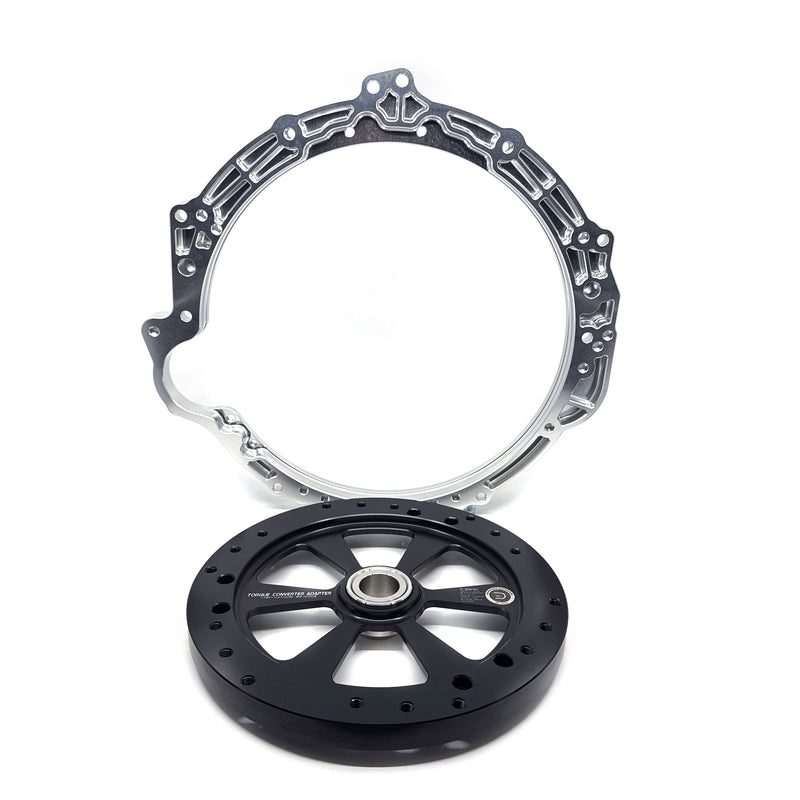

Adapter kit includes:

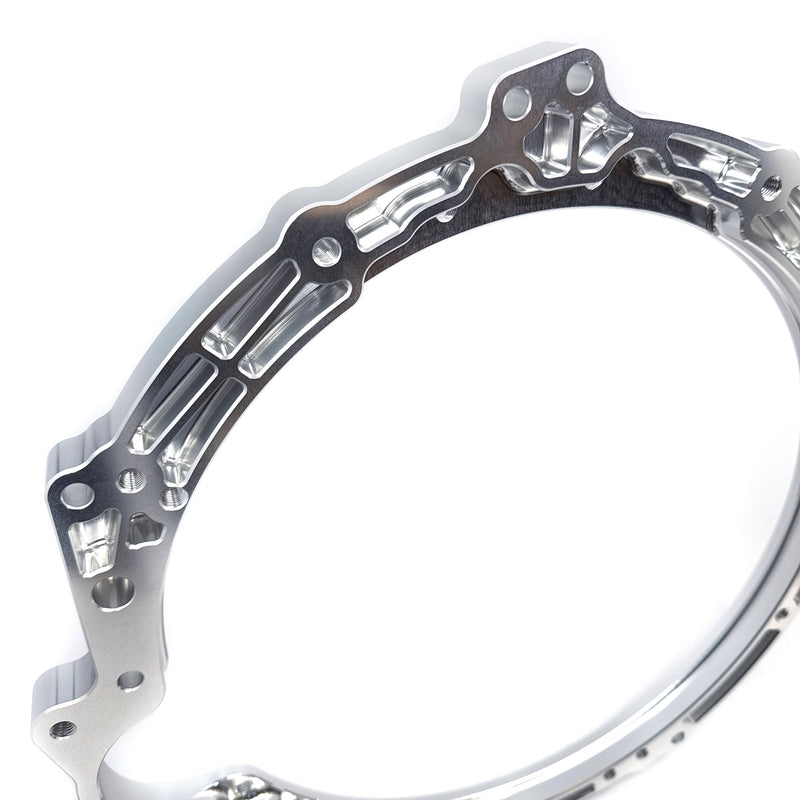

- Chevy LS/LT (Gen III/IV/V) to Dodge 8HP Adapter plate

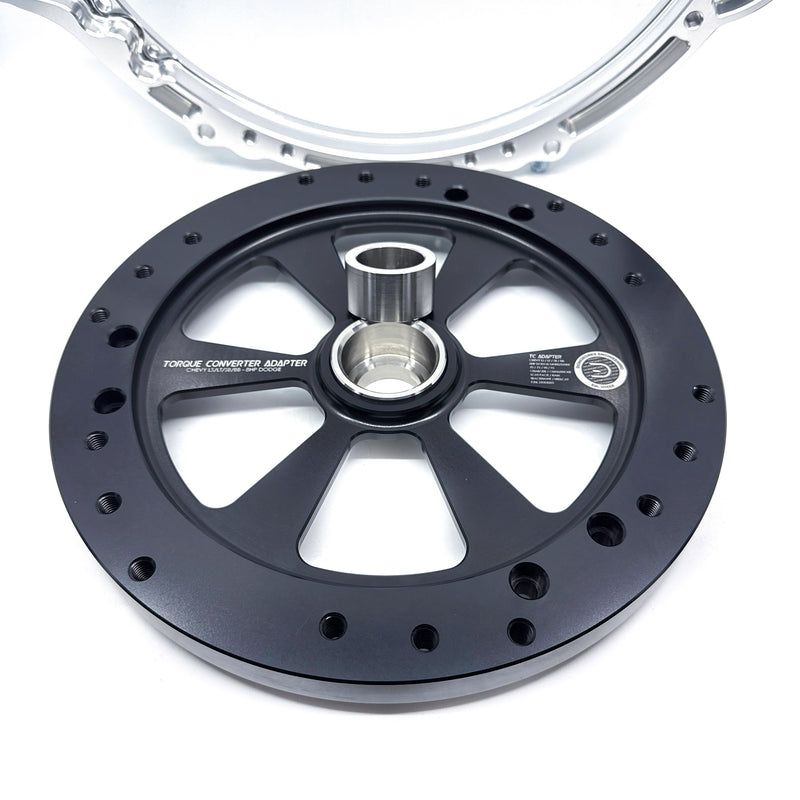

- Torque Converter adapter with center guiding pin
- Mounting hardware
