Dewla Dezign Performance DDP 1JZ 2JZ Front Main Seal Tool

Dewla Dezign Performance / DDP 1JZ 2JZ FRONT MAIN SEAL TOOL

SKU: DDP-1JZ-2JZ-FST

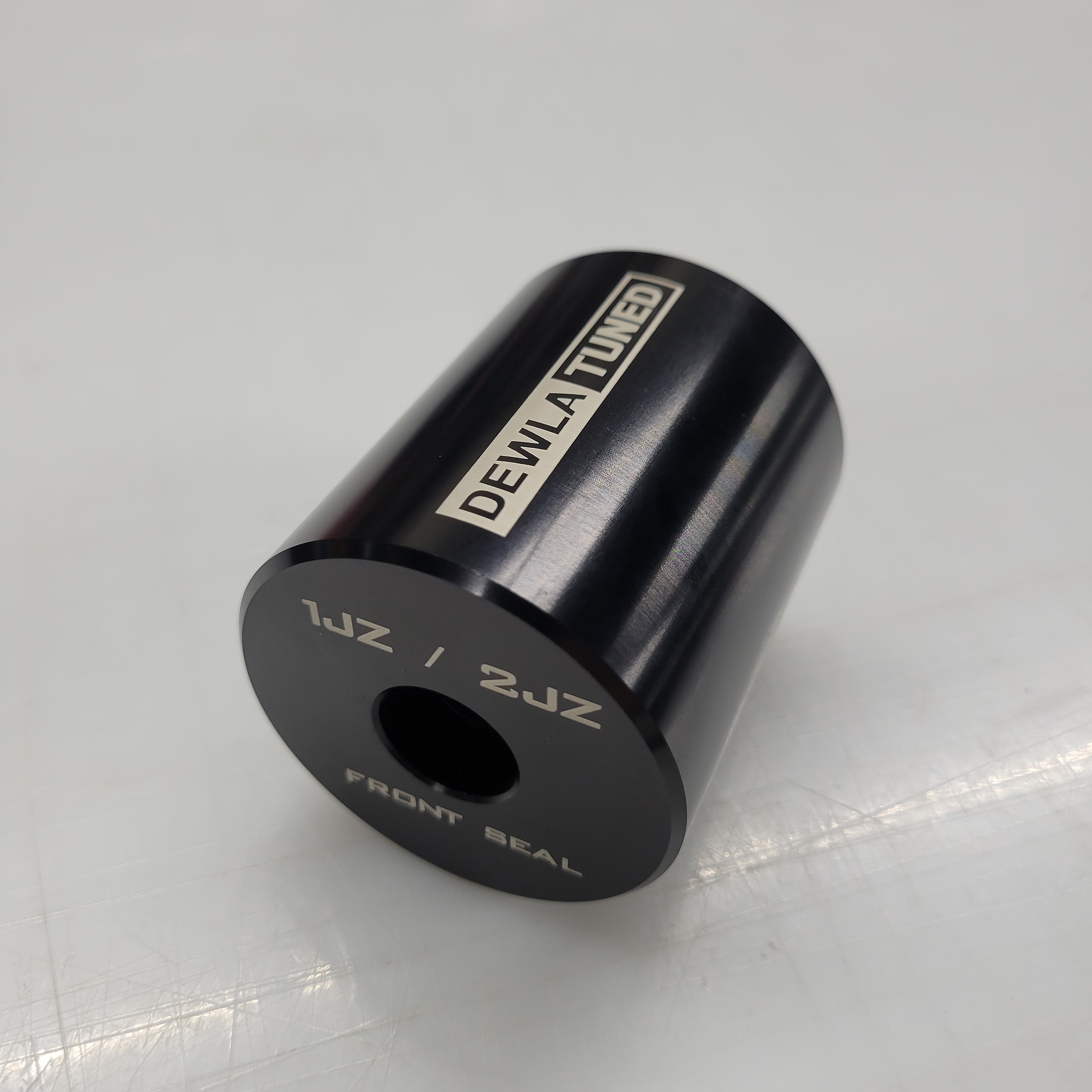

1JZ-2JZ FRONT MAIN PERFECT SEAL TOOL

(FRONT ONLY)

Comprised of 6061 Billet Aluminum, this is a "must-have" tool for any enthusiast or pro shop owner that is servicing a Toyota 1J or 2J series Engine.

The J series engines are notorious for pushing out front seals or leaking from both front and rear after a new installation.

Due to the pressure relief port on the front oil pump cover being so close to the sealing surface, it is very easy to push the seal too far in, thus blocking the port from proper return. On the other side of the equation, it is just as easy to not push the seal far enough and cause a potential blowout/leak, especially in high crankcase/high modified pump pressure scenarios.

This tool utilizes an offset shoulder surface and stock bolt location to dictate the seal depth.

Simply lubricate the seal and place it evenly on the tool, slide the tool over the crank snout and use the crank bolt to pull the front seal in evenly and at the perfect depth every time.
