Superpro Rear Subframe (Front) for JZA80 1993-1998 Toyota Supra
SKU: SPF5160K
Suspension subframes form the connection between the suspension and the vehicle's body and passenger compartment. These are one of the key areas vehicle manufacturers use to tune the passenger comfort and isolation. This means in many vehicles the bushings that soft heavily-voided rubber is used. As this rubber ages and degrades it allows significant movement in the suspension mounting which impacts traction, handling and control. In more powerful vehicles the original soft rubber bushings can also contribute to wheel hop under acceleration and significant movement in changing loads or gear changes “ all of which sap performance and reduce passenger comfort. SuperPro repairs and enhances performance while retaining OEM levels of isolation through the use of superior materials and designs. Further; the performance of SuperPro's subframe bushings does not degrade overtime as the synthetic elastomer materials used are not compromised be exposure to the elements or the varying loads over a vehicle's life.
Bushing Design Dimensions (mm)
| Bush Type | QTY | OD (A) | ID (B) | Length (C) | FL (D) | FLOD (E) | C/Tube Qty | C/Tube Size | Similar Bushings |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2 | AI=74.6 AII=70.6 | BI=41 BII=34 | 74.0 | 11.5 | EI=96 EII=90 | 2 | 41.5x15.5x81.5 | Click Here |
| 7 | 2 | 82 | 34 | 7.5 | 2 | 41.5x15.5x81.5 | Click Here | ||
| 9 | 2 | 98 | 70.6 | 10.0 | 2 | 2 | 41.5x15.5x81.5 | Click Here |
Misc. Product Information
|
SKU
|
SPF5160K |
|---|---|
|
Kit Contents
|

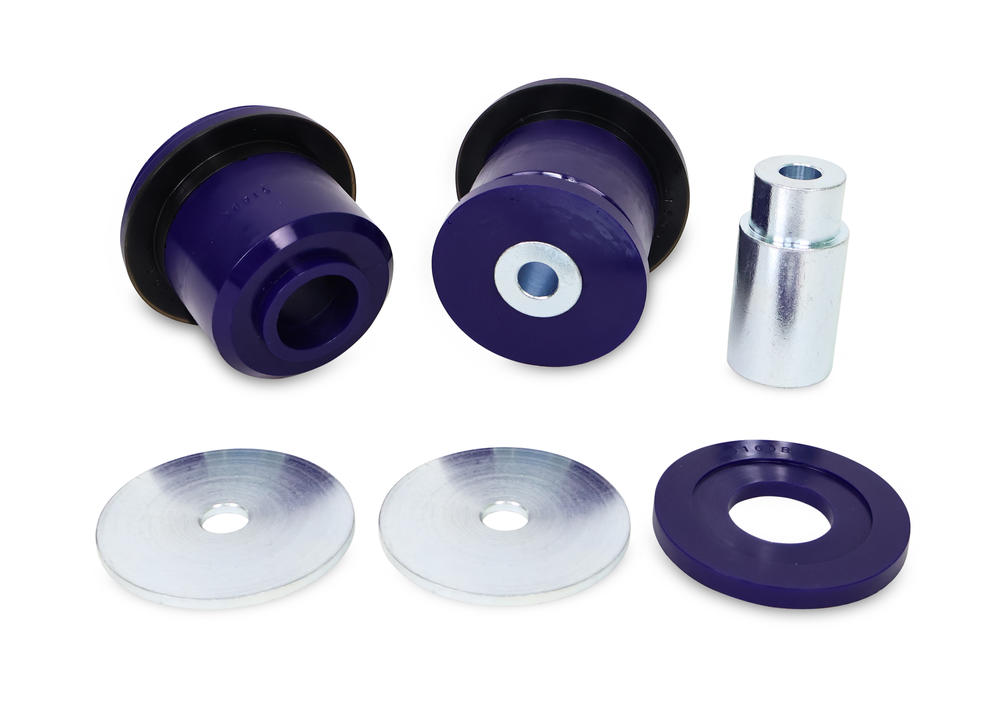

2 Bushings, 2 Tubes, 4 Washers |
|
Kits Required
|
1 |
|
Fitting Position
|
Rear Forward |
|
Foot Note 3
|
Lifetime |
|
EAN
|
09317745051602 |
|
Install Guide
|
Downloads |
|---|---|
|
Installation Time
|
5 Hours |
|
Installation Difficulty
|
Suspension Specialist recommended. |
|
Wheel Alignment Required
|
Yes |
|
Recommend Wheel Alignment
|
Rear Wheel Alignment |
