PHR - Powerhouse Racing Driveshaft Tail Flange for PHR 3.5" Driveshafts for Supra/SC300

€206,95

SKU: PHRASSP01012207-01
Description

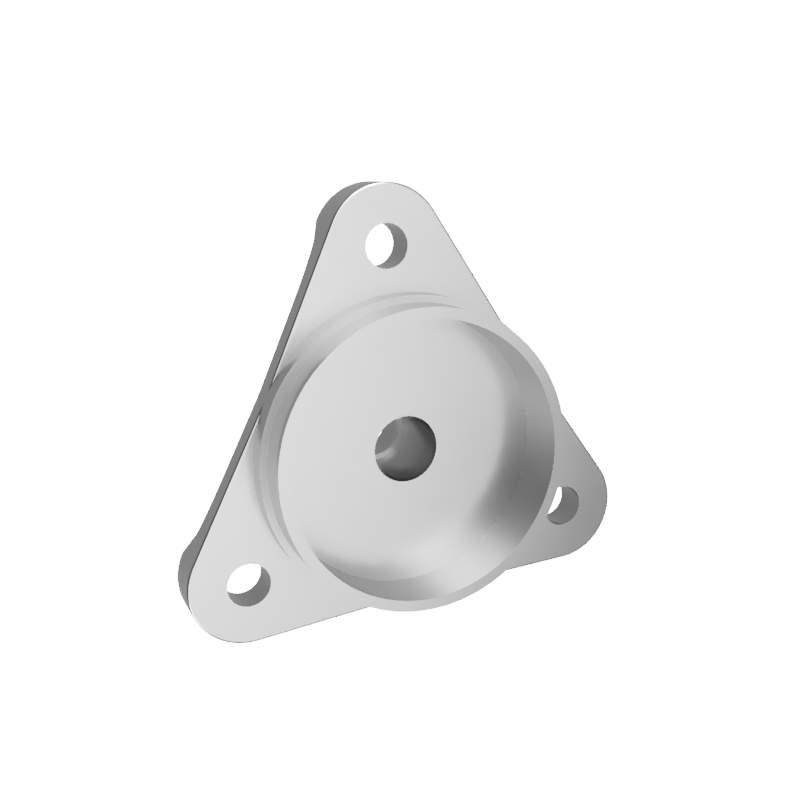

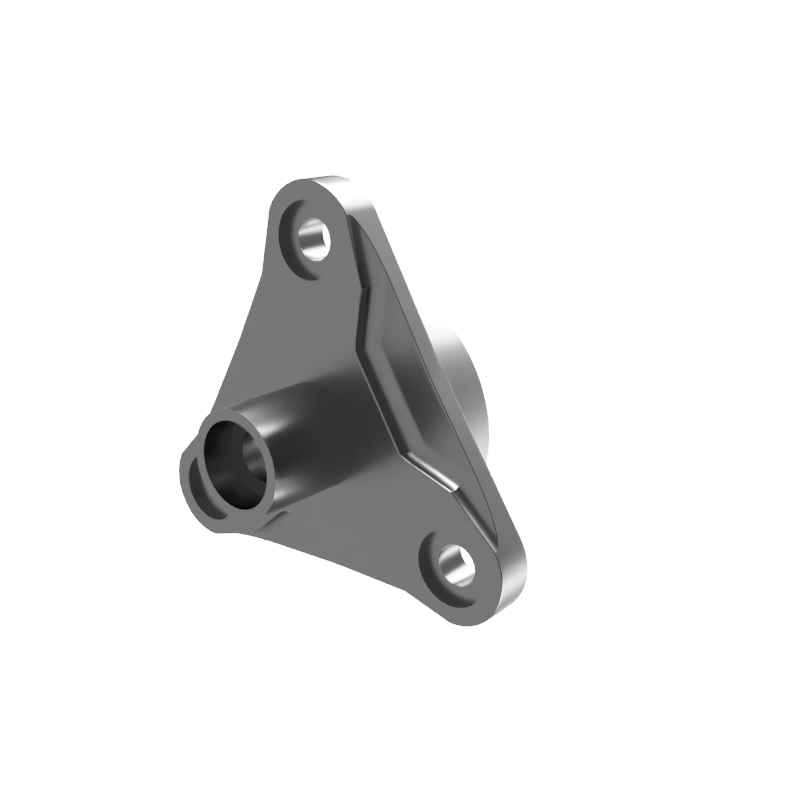

PHR Driveshaft Tail Flange for PHR 3.5" Driveshafts for Supra/SC300

SKU: PHRASSP01012207-01

This is the tail flange PHR uses in their 3.5" Driveshafts. You can use it to build your own custom driveshaft. It fits the larger flange found on twin turbo models. It will not fit the bolt pattern for non turbo vehicles.

Bolt Pattern Circle diameter: 100mm

Pilot Length: 31.5mm

Pilot OD: 32mm

Pilot ID: 16mm (5/8")

Driveshaft Tube Size: 3.5"

Seal: https://www.mcmaster.com/5154T12/

Bolt Size: 12mm

Bolt Head Max OD: 22mm
