Kelford T202-B Camshafts Set for Toyota Supra 2JZ 2JZGTE
Click to enlargeClick to enlarge

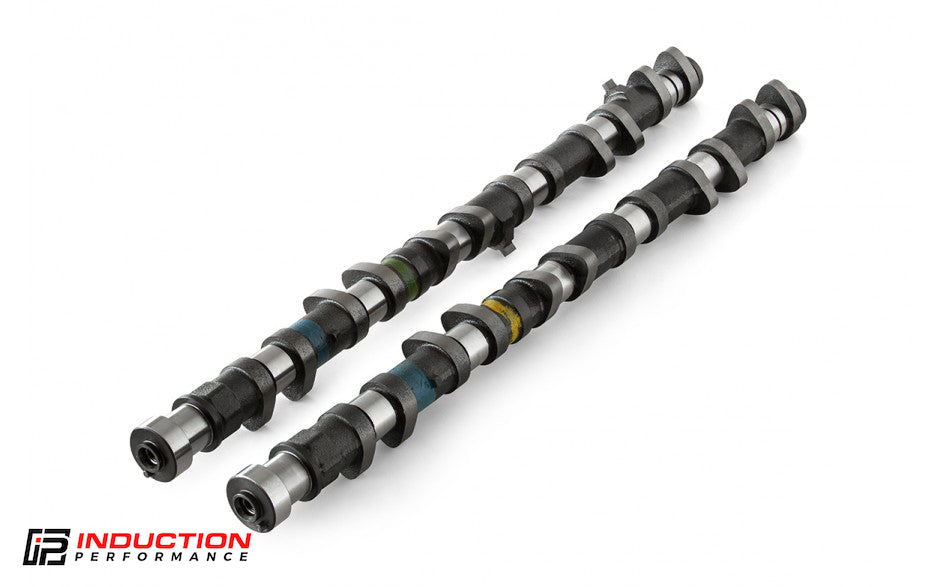

Kelford T202-B Camshafts Set for Toyota Supra 2JZ 2JZGTE

$909.00

SKU: T202-B
Description

Kelford T202-B Camshafts Set for Toyota Supra 2JZ 2JZGTE

260 / 260 Degrees Advertised Duration.

9.35mm / 9.35mm Lift.

To suit Toyota Supra / 2JZ TURBO.

Additional Information

Street performance cams to suit engines with turbo and ECU upgrades. Suits up to 30lb boost and 7500 RPM with our recommended valve spring. Will also drop in on stock spring.
Engine Make: Engine Model: Part Number:
TOYOTA Supra / 2JZ TURBO T202-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 9.60mm Exhaust: 9.60mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.35mm Exhaust: 9.35mm
Advertised Duration @ 0.10mm Intake: 260 Exhaust: 260
Duration @ 1.00mm VALVE LIFT Intake: 222 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 3 BTDC EVO: 47 BBDC
    IVC: 39 ABDC EVC: 5 BTDC
Suggested Centre Lines:   Intake: 108 Exhaust: 116
VALVE Lift @ TDC Intake: 1.31mm Exhaust: 0.26mm
